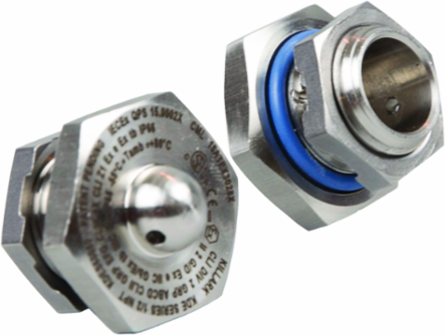

Killark KDES60M20 316 Stainless Steel Drain M20 - Ex e Class I Div. 2 IP66/4X, -55°C to 80°C
Killark KDES60M20 316 Stainless Steel Drain M20 - Ex e Class I Div. 2 IP66/4X, -55°C to 80°C
- MPN: KDES60M20
- UPC: 783936121680
- PPN: HBL-KDES60M20
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$233.40/ EA
Description
316 Stainless Steel Drain, M20 - Ex e Class I Div. 2 IP66/4X
Features
- Silicone O-ring supplied as standard and suitable for use in a -55°C to +80°C temperature range.
- 316 stainless steel.
- Internal 316 stainless steel locknut supplied as standard.
- When tightened to the proper torque the joint makes a hose down tight seal for type 4, 4X & IP66 application.
- The KDE drain and breather are installed either the bottom top of an enclosure. When installed in the bottom they act as a gravity fed drain to expel moisture from condensation that can build up in electrical enclosures. When installed in the top of an enclosure it acts as a breather allowing air to enter and prevent a vacuum which can cause the drain not to flow properly. They are cCSAus certified for Class I Div. 2 Groups ABCD, Class I Zone 1 & 2 IIC, Class II Groups EFG, Class III, Type 4 & 4X. Also, ATEX, IEC Ex & Inmetro, Ex e IIC, Ex tb IIIC IP66. The KDE are offered in aluminum, 304 series stainless steel, 30% glass filled nylon and 316 stainless steel. Supplied standard with a high temp silicone O-Ring and 316 stainless steel castellated lock nut. Thread sizes 1/2” & ¾” NPT and Metric size M20 & M25.
Specifications
Certifications
- EU RoHS Indicator
- Contact Manufacturer
Specifications
- Country of Origin
- US
- Hub Size
- M20
- Operating Temperature Celcius Min
- -55 °C
- Weight
- 0.25 lb.
- Nema Rating
- 3, 4, 4X
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- M20 Exe CID2 316SS DRAIN IP66/4X
- Harmonization Code
- 7326908688
- MSDS Flag
- No
- CSA File Number
- 2715851
- Series
- KDE Series
- BOX SIZE
- 0.000x0.000x0.000 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936121680
Hazardous Rating(s)Class I, Divisions 2, Groups A, B, C, D;Class I, Zones 1 & 2;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Operating Temperature Celcius Max80
Operating Temperature Range Celcius-55°C to 80°C
ApplicationWhen installed in the bottom of a thin wall enclosure the KDE allows water from condensation to drain continuously out of the enclosure. The drain breathers are installed through clearance holes and held secured with a internal locknut. The silicone external o ring makes a hose down tight seal.
TypeDrain & Breather
Class CodeD30
Freight Class Code06316011
Image Actual Or RepresentativeR
Sub Class CodeD30D237
Material316 Stainless Steel
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.250 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
