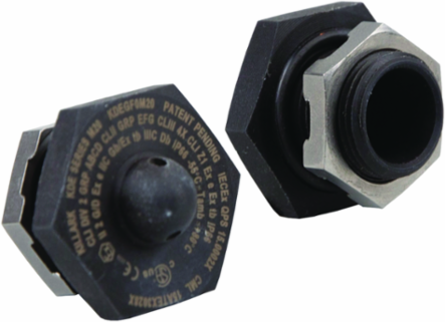

Killark KDEGF0M20 Glass Filled Nylon Drain M20 Ex e Class I Div. 2 IP66 with Silicone O-Ring
- MPN: KDEGF0M20
- UPC: 783936121710
- PPN: HBL-KDEGF0M20
CAD
$59.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Glass Filled Nylon Drain, M20 - Ex e Class I Div. 2 IP66/4X
Features
- Silicone O-ring supplied as standard and suitable for use in a -55°C to +80°C temperature range
- 30% glass filled nylon
- Internal 316 stainless steel locknut supplied as standard
- When tightened to the proper torque the joint makes a hose down tight seal for type 4, 4X & IP66 application
- The KDE drain and breather are installed either the bottom top of an enclosure. When installed in the bottom they act as a gravity fed drain to expel moisture from condensation that can build up in electrical enclosures. When installed in the top of an enclosure it acts as a breather allowing air to enter and prevent a vacuum which can cause the drain not to flow properly. They are cCSAus certified for Class I Div. 2 Groups ABCD, Class I Zone 1 & 2 IIC, Class II Groups EFG, Class III, Type 4 & 4X. Also, ATEX, IEC Ex & Inmetro, Ex e IIC, Ex tb IIIC IP66. The KDE are offered in aluminum, 304 series stainless steel, 30% glass filled nylon and 316 stainless steel. Supplied standard with a high temp silicone O-Ring and 316 stainless steel castellated lock nut. Thread sizes 1/2” & ¾” NPT and Metric size M20 & M25.
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Hub Size | M20 |
| Operating Temperature Celcius Min | -55 °C |
| Application | When installed in the bottom of a thin wall enclosure the KDE allows water from condensation to drain continuously out of the enclosure. The drain breathers are installed through clearance holes and held secured with a internal locknut. The silicone external o ring makes a hose down tight seal. |
| Type | Drain & Breather |
| Class Code | D30 |
| Freight Class Code | 06316011 |
| Image Actual Or Representative | R |
| Sub Class Code | D30D237 |
| CSA File Number | 2715851 |
| Series | KDE Series |
| BOX SIZE | 0.000x0.000x0.000 (in) |
| Carton - Number of Sub Packs | 5 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783936121710 |
| NAICS Code | 3359323110 |
| Hazardous Rating(s) | Class I, Divisions 2, Groups A, B, C, D;Class I, Zones 1 & 2;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
|---|---|
| Operating Temperature Celcius Max | 80 |
| Operating Temperature Range Celcius | -55°C to 80°C |
| Nema Rating | 3, 4, 4X |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | M20 Exe CID2 GFN DRAIN IP66/4X |
| Harmonization Code | 3926909989 |
| MSDS Flag | No |
| Buy America(n) Qualified | Contact Manufacturer |
| Material | Glass Filled Nylon |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 0.500 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 5 EA |
