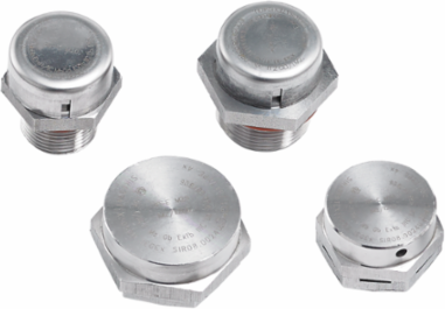

nVent Hoffman EXEBDM25SS6 Hazardous Location Breather Drain, 40x40x25mm, Stainless 316, M25 Thread
- MPN: EXEBDM25SS6
- UPC: 783510271664
- PPN: HOF-EXEBDM25SS6
- UNSPSC: 39121321
CAD
$156.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Hazardous Location Breather Drains allow enclosure air to breathe preventing condensation. This Hazardous Location Breather Drain M25 Ex e, EXEBDM25SS6 item measures 40x40x25mm with a material of Stainless 316.
Features
- Reduce corrosion that can limit the life of internal electrical and electronic components
- Prevent condensation when installations are subject to fluctuations in temperature in hazardous locations
- Effectively drain any water present within the enclosure
- Minimize moisture build-up within the enclosure by allowing air in the enclosure to breathe with surrounding atmosphere
- Position at the lowest point of an enclosure to ensure optimal draining of any moisture
- Maintain enclosure's UL Type rating when properly installed
- Available for Increased Safety (Ex e) and Flameproof (Ex d) applications
- Ex e Breather Drains:
- Includes castellated nut and nitrile O-ring
- 10mm thread length
- Install in a clearance hole 0.5 to 1.0mm larger than major diameter, or in a tapped hole
- Operating temperature of -58 F (-50 C) to 185 F (85 C)
- Ex d Breather Drains:
- Includes silicone O-ring
- 16mm thread length
- Install in a tapped hole
- Ex d Breather Drains operating temperature of -22 F (-30 C) to 302 F (150 C)
Documentation & Downloads
Specifications
Additional
- Thread Size
- M25
- Weight
- 0.1 kg
- Finish
- Brushed
- Operating Temperature Range
- -50 to 85 °C
- Certification
- ATEX, IECEx, cCSAus for Zone 1 or 2, Ex e and Ex d
Dimensions40 x 40 x 25 mm
Material316 Stainless Steel
Seal TypeNitrile O-ring with castellated nut
Ingress ProtectionIP66, NEMA Type 4, 4X
