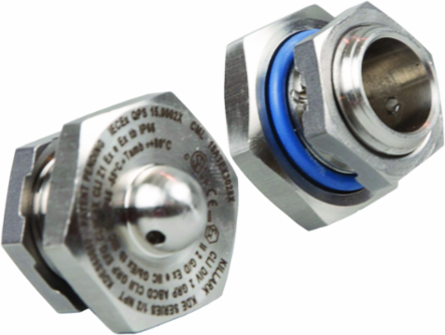

Killark KDEAL0050 Aluminum Drain 1/2 Inch NPT Class I Div. 2 IP66/4X, -55 C to 80 C Operating Temperature
- MPN: KDEAL0050
- UPC: 783936121598
- PPN: HBL-KDEAL0050
CAD
$178.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Aluminum Drain, 1/2" NPT - Ex e Class I Div. 2 IP66/4X
Features
- Silicone O-ring supplied as standard and suitable for use in a -55°C to +80°C temperature range.
- Aluminum.
- Internal 316 stainless steel locknut supplied as standard.
- When tightened to the proper torque the joint makes a hose down tight seal for type 4, 4X & IP66 application.
- The KDE drain and breather are installed either the bottom top of an enclosure. When installed in the bottom they act as a gravity fed drain to expel moisture from condensation that can build up in electrical enclosures. When installed in the top of an enclosure it acts as a breather allowing air to enter and prevent a vacuum which can cause the drain not to flow properly. They are cCSAus certified for Class I Div. 2 Groups ABCD, Class I Zone 1 & 2 IIC, Class II Groups EFG, Class III, Type 4 & 4X. Also, ATEX, IEC Ex & Inmetro, Ex e IIC, Ex tb IIIC IP66. The KDE are offered in aluminum, 304 series stainless steel, 30% glass filled nylon and 316 stainless steel. Supplied standard with a high temp silicone O-Ring and 316 stainless steel castellated lock nut. Thread sizes 1/2” & ¾” NPT and Metric size M20 & M25.
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Hub Size | 1/2" |
| Operating Temperature Celcius Min | -55 °C |
| Application | When installed in the bottom of a thin wall enclosure the KDE allows water from condensation to drain continuously out of the enclosure. The drain breathers are installed through clearance holes and held secured with a internal locknut. The silicone external o ring makes a hose down tight seal. |
| Type | Drain & Breather |
| Class Code | D30 |
| Freight Class Code | 06316011 |
| Image Actual Or Representative | R |
| Sub Class Code | D30D237 |
| CSA File Number | 2715851 |
| Series | KDE Series |
| BOX SIZE | 0.000x0.000x0.000 (in) |
| Carton - Number of Sub Packs | 5 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783936121598 |
| NAICS Code | 3359323110 |
| Hazardous Rating(s) | Class I, Divisions 2, Groups A, B, C, D;Class I, Zones 1 & 2;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
|---|---|
| Operating Temperature Celcius Max | 80 |
| Operating Temperature Range Celcius | -55°C to 80°C |
| Nema Rating | 3, 4, 4X |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | 1/2 NPT Exe CID2 ALUM DRAIN IP66/4X |
| Harmonization Code | 7616995190 |
| MSDS Flag | No |
| Buy America(n) Qualified | Contact Manufacturer |
| Material | Aluminum, Copper Free (less than 4/10 of 1%) |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 1.000 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 5 |
