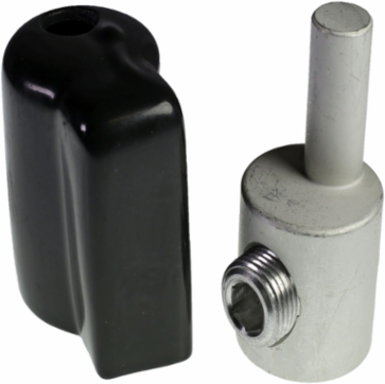

Burndy KAPO350 350 KCMIL Aluminum Mechanical Pin Adaptor, 600V, 450 in-lb Torque
Burndy KAPO350 350 KCMIL Aluminum Mechanical Pin Adaptor, 600V, 450 in-lb Torque
- MPN: KAPO350
- UPC: 621945493360
- PPN: BUR-50076504
- UNSPSC: 39121427
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$111.35/ EA
Description
350 Kcmil pin adaptor, Torque: 500 N lb, Voltage: 600 V.
Features
- AL9CU Dual Rated for both copper an aluminum conductor
- Listed to UL Wire Connector Standard UL486A-486B
- Rated for use with Fine Strand Conductor
- 600 Volt Rated
- Range Taking conductor port
- Plastisol insulated covers provided with each connector
Specifications
Specifications
- Buy American Compliant
- No
- Conductor - AL Str Size Range
- 1/0 AWG - 350 kcmil
- Conductor - Copper Flex H Size Range
- 1/0 AWG - 350 kcmil
- Conductor - Copper Flex K Size Range
- 1/0 AWG - 350 kcmil
- Country of Origin
- US
- Dimension - Strip Length inch
- 1.11 in
- Each - Width
- 5 in
- Hex Key
- 3/8 in
- Length
- 2.75 in
- Amperage Rating
- 350 A
- Conductor Size
- 1/0 AWG- 350 KCMIL
- Sub Brand
- Pin Adaptor
- Width
- 1.5 in
- Outside Diameter
- 1.38 in
- Certification Agency
- Proposition 65
- Description - Invoice
- 350 KCMIL OFFSET AL MECH PIN ADAPTOR
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Stock Indicator
- S - Shelf Stock
- Material
- Aluminum
- BOX SIZE
- 6.375x12.313x9.313 (in)
- Carton - Number of Sub Packs
- 25
- Carton - SCC-14 Next Lower Level Sub Pack
- 00621945493360
- Case - SCC-14 Next Lower Level Sub Pack
- 30621945493361
- Each - Pack Description
- Each
- Package - Gross Weight per Pack
- 6.125 lb.
- Package - Number of Sub Packs
- 25
- Package - SCC-14 Next Lower Level Sub Pack
- 00621945493360
- Package Quantity
- 25 EA
- Pallet Height
- 44.000 in
- Pallet Weight
- 596.250 lb.
ChannelSightWidgetId705
Conductor - Copper DLO Size Range1/0 AWG - 350 kcmil
Conductor - Copper Flex I Size Range1/0 AWG - 350 kcmil
Conductor - Copper Str Size Range1/0 AWG - 350 kcmil
Description - SlangMECHANICAL CONNS
Dimensions2.75 in x 1.5 in x 2 in
Height2 in
Installation Torque Recommended in-lb450
Product TypePIN TERMINAL
ApplicationTerminate "upsized" conductor and/or fine strand conductor into mechanical connectors found in molded case circuit breakers, panel board equipment, and other switchgear.
Size2.75 in x 1.5 in x 2 in
Type1/0 - 350 Mechanical Pin Adaptor; Off-Centered Pin
Connector TypeOffset
ARRA CompliantNo
Class CodeB51
Freight Class Code16027000
Image Actual Or RepresentativeA
Order Multiple1 EA
Sub Class CodeB51BFOF
Base Unit of MeasureEA
Carton - Gross Weight per Pack6.125 lb.
Carton - Pack DescriptionCarton
Carton - Total Units25
Each - Number of Sub Packs1
Lowest Level UOMEach
Package - GTIN - Package30621945493361
Package - Pack DescriptionPackage
Package - Total Units25 EA
Pallet - GTIN - Package70621945493369
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Contact Manufacturer
