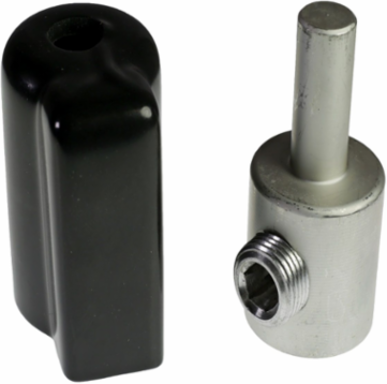

Burndy KAP350 350 KCMIL Aluminum Mechanical Pin Adaptor, Torque 100 N lb, 600 Volt Rated
- MPN: KAP350
- UPC: 621945493339
- PPN: BUR-50076486
- UNSPSC: 39121427
CAD
$128.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Wire Range: 350 kcmil, Dual Rated, 600 V, Mechanical Straight Pin Adaptor
Features
- AL9CU Dual Rated for both copper an aluminum conductor
- Listed to UL Wire Connector Standard UL486A-486B
- Rated for use with Fine Strand Conductor
- 600 Volt Rated
- Range Taking conductor port
- Plastisol insulated covers provided with each connector
Specifications
Additional
| Amperage | 350 A |
|---|---|
| Torque | 100 N lb |
| Conductor Size | 1/0 AWG - 350 kcmil |
| Width | 1.5 in |
| Strip Length | 1.11 in |
| Connector Type | Center Formed Adapter |
| Compliance | UL Listed, RoHS, Prop 65 Compliant |
| Country of Origin | US |
| Voltage | 600 V |
|---|---|
| Installation Torque Recommended | 450 in-lb |
| Length | 2.75 in |
| Height | 2 in |
| Outside Diameter | 1.38 in |
| Material | Aluminum |
| Hex Key Size | 3/8 in |
