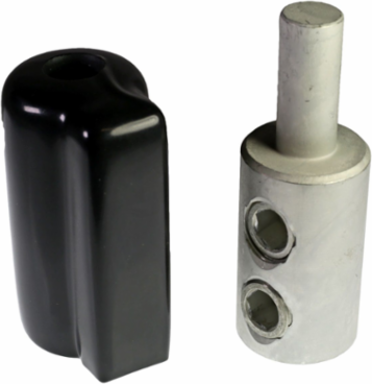

Burndy KAP750 750 KCMIL Aluminum Mechanical Pin Adaptor, 4.46 Inch Length, 600 Volt Rated
- MPN: KAP750
- UPC: 621945493346
- PPN: BUR-50076488
- UNSPSC: 39121427
CAD
$182.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Wire Range 750 kcmil, Dual Rated, 600 V, Mechanical Straight Pin Adaptor
Features
- AL9CU Dual Rated for both copper an aluminum conductor
- Listed to UL Wire Connector Standard UL486A-486B
- Rated for use with Fine Strand Conductor
- 600 Volt Rated
- Range Taking conductor port
- Plastisol insulated covers provided with each connector
Specifications
Additional
| Amperage | 535 A |
|---|---|
| Torque | 450 N lb |
| Size | 750 kcmil |
| Length | 4.46 in |
| Height | 2.37 in |
| Strip Length | 2.30 in |
| Connector Type | Center Formed Adapter |
| Compliance | UL Listed (UL486A-486B), RoHS, Prop 65 Compliant |
| Voltage | 600 V |
|---|---|
| Installation Torque | 500 in-lb |
| Conductor Size Range | 350 kcmil - 750 kcmil |
| Width | 1.87 in |
| Dimensions | 4.46 in x 1.87 in x 2.37 in |
| Outside Diameter | 1.75 in |
| Material | Aluminum |
| Country of Origin | US |
