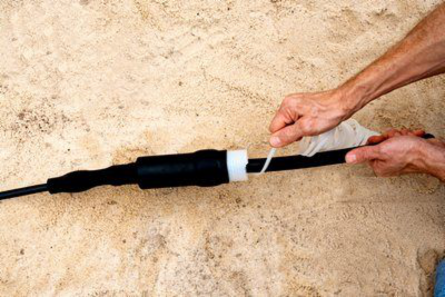

3M QI-18/57-325 Cold Shrink Quick Insulator, 1 kV, 0.71-2.25 Inch O.D., 10 per Case
- MPN: QI-18/57-325
- UPC: 051128577516
- PPN: MMM-QI-18/57-325
CAD
$180.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cold Shrink Quick Insulator, 1 kV, 0.71-2.25 Inch O.D., 10 per Case
Specifications
Key Specifications
| 3M ID | 80611443518 |
|---|---|
| Cable Type | Power Cable |
| Color | Black |
| Conductor Sizes | 1000 kcmil, 1250 kcmil, 250 kcmil, 300 kcmil, 350 kcmil, 400 kcmil, 500 kcmil, 600 kcmil, 650 kcmil, 700 kcmil, 750 kcmil, 800 kcmil, 900 kcmil |
| Dielectric Strength (V/mil) | 365 V/mil |
| Indoor/Outdoor | Both |
| Insulation O.D. Range (Metric) | 18.0-57.2 mm |
| Maximum Connector Length | 6.00 in |
| Maximum Wire Gauge | 325mm² |
| Number of Conductors | 1 |
| RoHS 2011/65/EU Compliant | Yes |
| Shielding Type | Non-shielded |
| Typical Splice Length | 32 in |
| Voltage | 1 kV |
| Applications | Cable Connection |
|---|---|
| Case Quantity | 10 |
| Conductor Material | Aluminum, Copper |
| Connector Included | No, None |
| Elongation | 750 % |
| Insulation O.D. Range | 0.71-2.25 in |
| Insulation Outside Diameter Range | 1.04 - 1.70 Inch |
| Maximum Connector Length (metric) | 152.4 mm |
| Minimum Wire Gauge | 185mm² |
| Product Type | Splice |
| RoHS EU Comments | RoHS 2011/65/EU compliant without exemption |
| Trademark | 3M |
| Typical Splice Length (metric) | 813 mm |
| Voltage Application | Medium Voltage |
