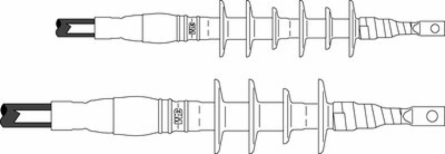

3M 7654-S-HSG-4 Cold Shrink QT-III Silicone Rubber Termination, 0.83-1.53 Inch O.D., 5-28 kV
- MPN: 7654-S-HSG-4
- UPC: 054007421993
- PPN: MMM-7654-S-HSG-4
CAD
$786.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cold Shrink QT-III Silicone Rubber Termination, 0.83-1.53 Inch O.D., 5-28 kV
Specifications
Key Specifications
| 3M ID | 80610839997 |
|---|---|
| BIL | 150 kV |
| Breakout Boot | No |
| Cable Insulation Outside Diameter Range (metric) | 21.1-38.9 mm |
| Compatible Lug | QL2-A-1/0-350, QL2-A-2-250, QL2-A-4/0-600 |
| Conductor Sizes | 2/0 AWG, 250 kcmil, 3/0 AWG, 300 kcmil, 350 kcmil, 4/0 AWG, 400 kcmil, 500 kcmil, 600 kcmil, 700 kcmil, 750 kcmil |
| Indoor/Outdoor | Outdoor Skirted |
| Insulation Rejacketing | No |
| Maximum Installed Length | 12.25 in |
| Number of Skirts | 4 |
| RoHS 2011/65/EU Compliant | Undetermined |
| Shielding Type | Longitudinally Corrugated (LC), Tape Shield, Wire-Over-Tape Shield |
| Voltage | 15 kV, 25/28 kV, 5 kV, 8 kV |
| Agency Approvals | IEEE |
|---|---|
| Brand | 3M™ |
| Cable Insulation Outside Diameter Range | 0.83-1.53 in |
| Case Quantity | 1 |
| Conductor Size by Voltage | (5 kV) 500-750 kcmil, (8 kV) 350-700 kcmil, (15 kV) 4/0 AWG-500 kcmil, (25/28 kV) 2/0 AWG-250 |
| Family | QT-III |
| Insulation Level | 100%, 133% |
| Lug/Stem Connector Included in Kit | No |
| Number of Conductors | 1 |
| Product Series | 7650-S-HSG |
| RoHS EU Comments | Contact 3M for information |
| Trademark | 3M |
| Voltage Application | Medium Voltage |
