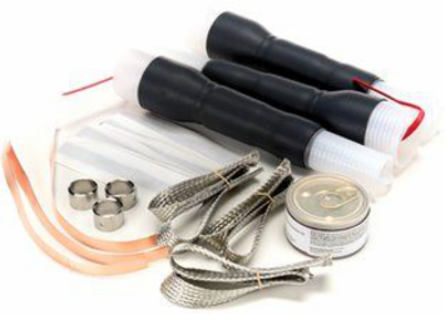

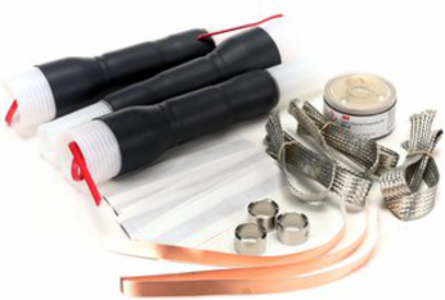

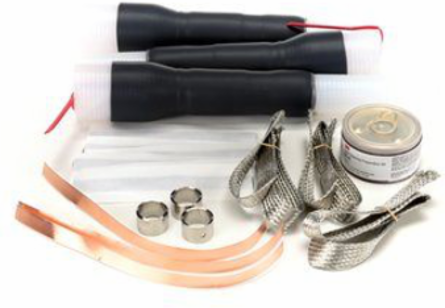

3M 7622-T-95 3M Cold Shrink QT-III Silicone Rubber Termination Kit 7622-T-95, Tape, Wire and UniShield, 5-8.7 kV, 0.64-1.08 in (16,3-27,4 mm) Cable Insul. O.D., 3 termination/kit

3M Cold Shrink QT-III Silicone Rubber Termination Kit 7622-T-95, Tape, Wire and UniShield, 5-8.7 kV, 0.64-1.08 in (16,3-27,4 mm) Cable Insul. O.D., 3 termination/kit - https://media.province-electric.com/3M/2018q1/2f2ab32c0f1c077717f7ef1488e2753b580bd063-medium.png

MPN: 7622-T-95
UPC: 051128574836
PPN: MMM-7622-T-95

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1185.34/ EA

Qty:

Loading add to cart quantity...

Description

3M Cold Shrink QT-III Silicone Rubber Termination Kit 7622-T-95, Tape, Wire and UniShield, 5-8.7 kV, 0.64-1.08 in (16,3-27,4 mm) Cable Insul. O.D., 3 termination/kit

Specifications

3M ID: 80611440837

BIL: 95 kV

Breakout Boot: No

Cable Insulation Outside Diameter Range (metric): 16.3-27.4 mm

Conductor Size by Voltage: (5 kV) 4/0 AWG-400 kcmil, (8 kV) 3/0 AWG-300 kcmil

Family: QT-III

Insulation Level: 100%, 133%

Lug/Stem Connector Included in Kit: No

Number of Conductors: 1

Product Series: 7620-T

RoHS EU Comments: Contact 3M for information

Trademark: 3M™

Voltage Application: Medium Voltage

Agency ApprovalsIEEE

Brand3M

Cable Insulation Outside Diameter Range0.64-1.08 in

Case Quantity1

Conductor Sizes250 kcmil, 3/0 AWG, 300 kcmil, 350 kcmil, 4/0 AWG, 400 kcmil

Indoor/OutdoorIndoor Non-skirted

Insulation RejacketingNo

Maximum Installed Length8.50 in

Number of Skirts0

RoHS 2011/65/EU CompliantUndetermined

Shielding TypeTape Shield, UniShield®, Wire Shield

Voltage5 kV, 8 kV
