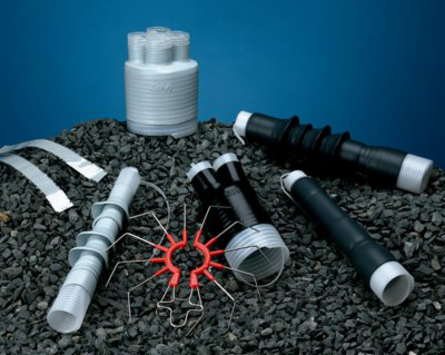

3M 7622-T-110 3M Cold Shrink QT-III Termination Kit 7622-T-110, Non-Skirted, Tape, Wire and UniShield, 15 kV, 0.64-1.08 in (16,3-27,4 mm) Cable Insul. O.D., 3 termination/kit

3M Cold Shrink QT-III Termination Kit 7622-T-110, Non-Skirted, Tape, Wire and UniShield, 15 kV, 0.64-1.08 in (16,3-27,4 mm) Cable Insul. O.D., 3 termination/kit

MPN: 7622-T-110
UPC: 054007417606
PPN: MMM-7622-T-110

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1171.32/ EA

Qty:

Loading add to cart quantity...

Description

3M Cold Shrink QT-III Termination Kit 7622-T-110, Non-Skirted, Tape, Wire and UniShield, 15 kV, 0.64-1.08 in (16,3-27,4 mm) Cable Insul. O.D., 3 termination/kit

Specifications

3M ID: 80610834097

BIL: 110 kV

Breakout Boot: RoHS 2011/65/EU Compliant, Yes

Cable Insulation Outside Diameter Range (metric): 16.3-27.4 mm

Conductor Size by Voltage: (5 kV) 4/0 AWG-400 kcmil, (8 kV) 3/0 AWG-300 kcmil, (15 kV) 2-4/0 AWG

Family: QT-III

Insulation Level: 100%, 133%

Lug/Stem Connector Included in Kit: No, Sunlight Resistant

Number of Conductors: 3

Product Series: 7620-T

RoHS EU Comments: Contact 3M for information

Trademark: 3M™

Voltage Application: Medium Voltage

Agency ApprovalsIEEE

Brand3M

Cable Insulation Outside Diameter Range0.64-1.08 in

Case Quantity1

Conductor Sizes1 AWG, 1/0 AWG, 2 AWG, 2/0 AWG, 250 kcmil, 3/0 AWG, 300 kcmil, 350 kcmil, 4/0 AWG, 400 kcmil

Indoor/OutdoorIndoor Non-skirted

Insulation RejacketingNo

Maximum Installed Length12.00 in

Number of Skirts0, Hook Type

RoHS 2011/65/EU CompliantUndetermined

Shielding TypeTape Shield, UniShield®, Wire Shield

Voltage15 kV, 5 kV, 8 kV
