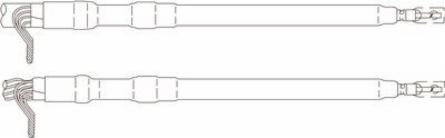

3M 7642-T-HSG-110 Cold Shrink QT-III Termination Kit, 5-15 kV, 0.64-1.08 Inch Cable O.D.
- MPN: 7642-T-HSG-110
- UPC: 054007417651
- PPN: MMM-7642-T-HSG-110
CAD
$469.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cold Shrink QT-III Termination Kit, 5-15 kV, 0.64-1.08 Inch Cable O.D.
Specifications
Key Specifications
| 3M ID | 80610834147 |
|---|---|
| BIL | 110 kV |
| Cable Insulation Outside Diameter Range | 0.64-1.08 in |
| Case Quantity | 1 |
| Conductor Sizes | 1 AWG, 1/0 AWG, 2 AWG, 2/0 AWG, 250 kcmil, 3/0 AWG, 300 kcmil, 350 kcmil, 4/0 AWG, 400 kcmil |
| Indoor/Outdoor | Indoor Non-skirted |
| Insulation Rejacketing | No |
| Maximum Installed Length | 12.00 in |
| Number of Skirts | 0 |
| RoHS 2011/65/EU Compliant | Undetermined |
| Shielding Type | Longitudinally Corrugated (LC), Tape Shield, Wire-Over-Tape Shield |
| Voltage | 15 kV, 5 kV, 8 kV |
| Agency Approvals | IEEE |
|---|---|
| Breakout Boot | No |
| Cable Insulation Outside Diameter Range (metric) | 16.3-27.4 mm |
| Conductor Size by Voltage | (5 kV) 4/0 AWG-400 kcmil, (8 kV) 3/0 AWG-300 kcmil, (15 kV) 2-4/0 AWG |
| Family | QT-III |
| Insulation Level | 100%, 133% |
| Lug/Stem Connector Included in Kit | No |
| Number of Conductors | 1 |
| Product Series | 7640-T-HSG-110 |
| RoHS EU Comments | Contact 3M for information |
| Trademark | 3M |
