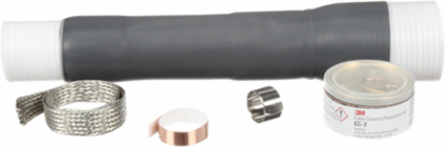

3M 7010289232 3M™ Cold Shrink QT-III Termination Kit 7623-T-110, Tape/Wire/UniShield® Shielding, 5-15 kV, 3/kit, Indoor

MPN: 7010289232
UPC: 054007417958
PPN: MMM-7623-T-110

$1229.39

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

3M™ Cold Shrink QT-III Silicone Rubber Termination Kit 7620-T and 7690-T Series contains one-piece, non-skirted, silicone rubber terminations, meets IEEE Standard 48 Class 1 for indoor and weather-protected applications. The kits are designed for terminating solid dielectric shielded power cable rated 5–35 kV, with tape shield, wire shield and UniShield® constructions.

Features

Provides a void-free seal to tape shield, wire shield and UniShield® power cables
High dielectric-constant material regulates the distribution of electric field stress
Suitable for indoor applications
Non-tracking, molded, silicone rubber insulation offers durability
Includes 3 non-skirted, 1-piece, 3-phase, cold shrink terminations

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States
Insulation Outer Diameter (Imperial)	0.72
Insulation Outer Diameter (Metric)	16.256
Number of Conductors	1.0
Application	Cable Termination
Insulation O.D. Range	0.72 - 1.29 in
Material	Silicone Rubber
Product Color	Gray
Product Technology	Cold Shrink
Type	Cold Shrink QT-III

Cable Shielding	Tape Shield
Insulation Outer Diameter (Imperial) UOM	in
Insulation Outer Diameter (Metric) UOM	mm
Voltage	15 kV
BIL	110 kV
Insulation O.D. Range (Metric)	18.3-32.8 mm
Maximum Installed Length	12.00 in
Product Series	7620-T
RoHS EU Comments	Contact 3M for information
Voltage Application	Medium Voltage
