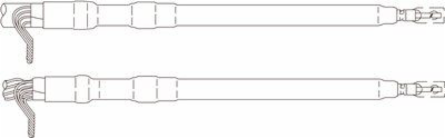

3M 7656-T-HSG-150 3M Cold Shrink QT-III Termination Kit 7656-T-HSG-150, Longitudinally Corrugated and Wire Over Tape, Non-Skirted High Amp, 5-35 kV, 1.53-2.32 in (38,9-58,9 mm) Cable Insul. O.D., 1 termination/kit

3M Cold Shrink QT-III Termination Kit 7656-T-HSG-150, Longitudinally Corrugated and Wire Over Tape, Non-Skirted High Amp, 5-35 kV, 1.53-2.32 in (38,9-58,9 mm) Cable Insul. O.D., 1 termination/kit
  • MPN: 7656-T-HSG-150
  • UPC: 054007417774
  • PPN: MMM-7656-T-HSG-150

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$762.20/ EA

Description

3M Cold Shrink QT-III Termination Kit 7656-T-HSG-150, Longitudinally Corrugated and Wire Over Tape, Non-Skirted High Amp, 5-35 kV, 1.53-2.32 in (38,9-58,9 mm) Cable Insul. O.D., 1 termination/kit

Specifications

Specifications

3M ID
80610834261
BIL
150 kV
Breakout Boot
No
Cable Insulation Outside Diameter Range (metric)
38.9-58.9 mm
Compatible Lug
QL2-A-1000-1250, QL2-A-350-750, QL2-A-500-1000
Conductor Sizes
1000 kcmil, 1250 kcmil, 1500 kcmil, 1750 kcmil, 2000 kcmil, 700 kcmil, 750 kcmil, 800 kcmil, 900 kcmil
Indoor/Outdoor
Indoor Non-skirted
Insulation Rejacketing
No
Maximum Installed Length
16.00 in
Number of Skirts
0
RoHS 2011/65/EU Compliant
Undetermined
Shielding Type
Longitudinally Corrugated (LC), Tape Shield, Wire-Over-Tape Shield
Voltage
15 kV, 25/28 kV, 35 kV, 5 kV, 8 kV
Agency ApprovalsIEEE
Brand3M™
Cable Insulation Outside Diameter Range1.53-2.32 in
Case Quantity1
Conductor Size by Voltage(5 kV) 1750-2000 kcmil, (8 kV) 1500-2000 kcmil, (15 kV) 1250-2000 kcmil, (25/28 kV) 900-1750 kcmil, (35 kV) 700-1500 kcmil
FamilyQT-III
Insulation Level100%, 133%
Lug/Stem Connector Included in KitNo
Number of Conductors1
Product Series7650-T-HSG-150
RoHS EU CommentsContact 3M for information
Trademark3M
Voltage ApplicationMedium Voltage
