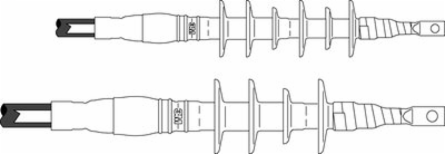

3M 7656-S-HSG-4 3M Cold Shrink QT-III Silicone Rubber Termination 7656-S-HSG-4 (High-Amp), 5-25/28 kV, 1.53-2.32 in (21,1-38,9 mm) Cable Insul. O.D., 1 termination/kit

3M Cold Shrink QT-III Silicone Rubber Termination 7656-S-HSG-4 (High-Amp), 5-25/28 kV, 1.53-2.32 in (21,1-38,9 mm) Cable Insul. O.D., 1 termination/kit
3M Cold Shrink QT-III Silicone Rubber Termination 7656-S-HSG-4 (High-Amp), 5-25/28 kV, 1.53-2.32 in (21,1-38,9 mm) Cable Insul. O.D., 1 termination/kit
  • MPN: 7656-S-HSG-4
  • UPC: 054007422099
  • PPN: MMM-7656-S-HSG-4

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$964.45/ EA

Description

3M Cold Shrink QT-III Silicone Rubber Termination 7656-S-HSG-4 (High-Amp), 5-25/28 kV, 1.53-2.32 in (21,1-38,9 mm) Cable Insul. O.D., 1 termination/kit

Specifications

Specifications

3M ID
80610920094
Brand
3M™
Cable Insulation Outside Diameter Range
1.53-2.32 in
Case Quantity
1
Conductor Size by Voltage
(5 kV) 1750-2000 kcmil, (8 kV) 1500-2000 kcmil, (15 kV) 1250-2000 kcmil, (25/28 kV) 900-1750 kcmil
Family
QT-III
Insulation Level
100%, 133%
Lug/Stem Connector Included in Kit
No
Number of Conductors
1
Product Series
7650-S-HSG
RoHS EU Comments
Contact 3M for information
Trademark
3M
Voltage Application
Medium Voltage
BIL150 kV
Breakout BootNo
Cable Insulation Outside Diameter Range (metric)38.9-58.9 mm
Compatible LugQL2-A-1000-1250
Conductor Sizes1000 kcmil, 1250 kcmil, 1500 kcmil, 1750 kcmil, 2000 kcmil, 900 kcmil
Indoor/OutdoorOutdoor Skirted
Insulation RejacketingNo
Maximum Installed Length13.25 in
Number of Skirts4
RoHS 2011/65/EU CompliantUndetermined
Shielding TypeLongitudinally Corrugated (LC), Tape Shield, Wire-Over-Tape Shield
Voltage15 kV, 25/28 kV, 5 kV, 8 kV
