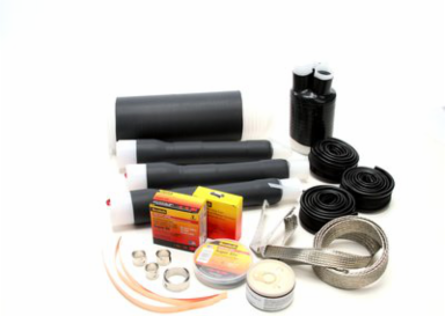

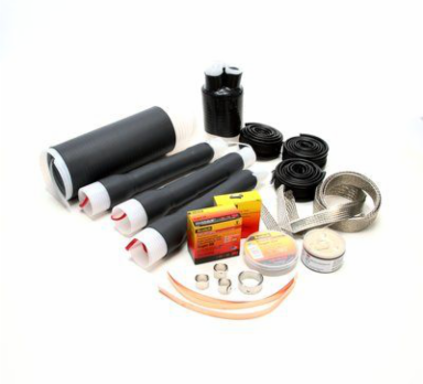

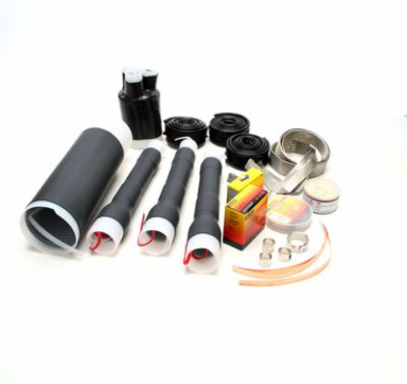

3M 7622-T-110-3G Cold Shrink QT-III Medium Voltage Termination Kit, 15 kV, 0.70-0.92 Inch O.D.
- MPN: 7622-T-110-3G
- UPC: 054007436706
- PPN: MMM-7622-T-110-3G
CAD
$3241.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cold Shrink QT-III Medium Voltage Termination Kit, 15 kV, 0.70-0.92 Inch O.D.
Specifications
Key Specifications
| 3M ID | 80611202708 |
|---|---|
| BIL | 110 kV |
| Breakout Boot | Yes |
| Cable Insulation Outside Diameter Range (metric) | 17.8-23.4 mm |
| Conductor Size by Voltage | (5 kV, 100%) 4/0 AWG-350 kcmil, (5 kV, 133%) 3/0 AWG-350 kcmil, (8 kV, 100%) 3/0 AWG-350 kcmil, (8 kV, 133%) 3/0 AWG-350 kcmil, (15 kV, 100%) 1/0-4/0 AWG, (15 kV, 133%) 2 AWG-3/0 AWG |
| Family | QT-III |
| Insulation Level | 1, 1.33 |
| Lug/Stem Connector Included in Kit | No |
| Maximum Cable Outside Diameter (metric) | 83.8 mm |
| Number of Conductors | 3 |
| Product Series | 7600-T-3G |
| RoHS EU Comments | Contact 3M for information |
| Trademark | 3M |
| Voltage Application | Medium Voltage |
| Agency Approvals | IEEE |
|---|---|
| Brand | 3M™ |
| Cable Insulation Outside Diameter Range | 0.70-0.92 in |
| Case Quantity | 1 |
| Conductor Sizes | 1/0 AWG, 2/0 AWG, 250 kcmil, 3/0 AWG, 300 kcmil, 350 kcmil, 4/0 AWG |
| Indoor/Outdoor | Indoor Non-skirted |
| Insulation Rejacketing | Yes |
| Maximum Cable Outside Diameter | 3.30 in |
| Maximum Installed Length | 12.00 in |
| Number of Skirts | 0 |
| RoHS 2011/65/EU Compliant | Undetermined |
| Shielding Type | Tape Shield, UniShield®, Wire Shield |
| Voltage | 15 kV, 5 kV, 8 kV |
