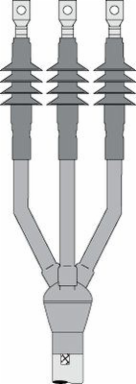

3M 7695-S-4-3W Cold Shrink QT-III Cable Termination Kit, 3 Conductors, 1.18-1.52 in O.D., 35 kV
- MPN: 7695-S-4-3W
- UPC: 054007047544
- PPN: MMM-7695-S-4-3W
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cold Shrink QT-III Cable Termination Kit, 3 Conductors, 1.18-1.52 in O.D., 35 kV
Specifications
Key Specifications
- 3M ID
- 80610988653
- Barrel Style
- Standard Barrel
- Breakout Boot
- Yes
- Cable Insulation Outside Diameter Range (metric)
- 30.0-38.6 mm
- Color
- Blue
- Conductor Sizes
- 1000 kcmil, 300 kcmil, 350 kcmil, 400 kcmil, 500 kcmil, 600 kcmil, 700 kcmil, 750 kcmil, 800 kcmil, 900 kcmil
- Family
- QT-III
- Indoor/Outdoor
- Outdoor Skirted
- Inside Diameter (metric)
- 5.1 mm
- Length
- 1.75 Inch
- Lug/Stem Connector Included in Kit
- No
- Maximum Voltage
- 35 Kilovolt
- Number of Skirts
- 4
- Outside Diameter (metric)
- 7.4 mm
- RoHS 2011/65/EU Compliant
- No
- Shielding Type
- Tape Shield, UniShield®, Wire Shield
- Voltage
- 15 kV, 25/28 kV, 5 kV, 8 kV
Agency ApprovalsAEIC, IEC, JIS
BIL150 kV
Cable Insulation Outside Diameter Range1.18-1.52 in
Case Quantity1
Conductor Size by Voltage(5 kV) 800-1000 kcmil, (8 kV) 750-1000 kcmil, (15 kV) 500-750 kcmil, (25/28 kV) 300-500 kcmil
Connector Base MetalCopper
For Use WithCopper Conductor Only
Inside Diameter0.2 Inch
Insulation RejacketingYes
Length (Metric)44.4 mm
Maximum Installed Length12.25 in
Number of Conductors3
Outside Diameter0.29 Inch
Product Series7600-S-3W
RoHS EU CommentsContact 3M for information
TrademarkScotchlok
