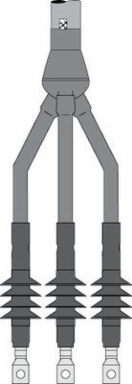

3M 7695-S-4-INV-3W 3M Cold Shrink QT-III Three Conductor Cable Termination Kit 7695-S-4-INV-3W, Tape, Wire and UniShield, 25/28 kV, 1.18-1.52 in (30.0-38.6 mm) Cable Insul. O.D., 3 termination/kit

3M Cold Shrink QT-III Three Conductor Cable Termination Kit 7695-S-4-INV-3W, Tape, Wire and UniShield, 25/28 kV, 1.18-1.52 in (30.0-38.6 mm) Cable Insul. O.D., 3 termination/kit
  • MPN: 7695-S-4-INV-3W
  • UPC: 054007047476
  • PPN: MMM-7695-S-4-INV-3W

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

Description

3M Cold Shrink QT-III Three Conductor Cable Termination Kit 7695-S-4-INV-3W, Tape, Wire and UniShield, 25/28 kV, 1.18-1.52 in (30.0-38.6 mm) Cable Insul. O.D., 3 termination/kit

Specifications

Specifications

3M ID
80610988588
Breakout Boot
Yes
Cable Insulation Outside Diameter Range (metric)
30.0-38.6 mm
Conductor Size by Voltage
(5 kV) 800-1000 kcmil, (8 kV) 750-1000 kcmil, (15 kV) 500-750 kcmil, (25/28 kV) 300-500 kcmil
Family
QT-III
Insulation Rejacketing
Yes
Number of Conductors
3
Product Series
7600-S-INV-3W
RoHS EU Comments
Contact 3M for information
Trademark
3M
BIL200 kV
Cable Insulation Outside Diameter Range1.18-1.52 in
Case Quantity1
Conductor Sizes1000 kcmil, 300 kcmil, 350 kcmil, 400 kcmil, 500 kcmil, 600 kcmil, 700 kcmil, 750 kcmil, 800 kcmil, 900 kcmil
Indoor/OutdoorOutdoor Skirted
Maximum Installed Length16.00 in
Number of Skirts4
RoHS 2011/65/EU CompliantUndetermined
Shielding TypeTape Shield, UniShield®, Wire Shield
Voltage15 kV, 25/28 kV, 5 kV, 8 kV
