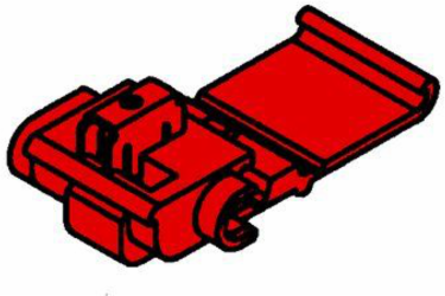

3M 558-BOX 3M Scotchlok Electrical IDC 558-BOX, Run and Tap, Flame Retardant, Red, 22-16 AWG, 100 per carton, 1000 per case

3M Scotchlok Electrical IDC 558-BOX, Run and Tap, Flame Retardant, Red, 22-16 AWG, 100 per carton, 1000 per case
3M Scotchlok Electrical IDC 558-BOX, Run and Tap, Flame Retardant, Red, 22-16 AWG, 100 per carton, 1000 per case
  • MPN: 558-BOX
  • UPC: 054007148616
  • PPN: MMM-558-BOX

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$0.65/ EA

Description

3M Scotchlok Electrical IDC 558-BOX, Run and Tap, Flame Retardant, Red, 22-16 AWG, 100 per carton, 1000 per case

Specifications

Specifications

3M ID
80014000808
Brand
Scotchlok™
Conductor Size
22 - 16 AWG (Tap)
Connection Type
Run and Tap
CSA File Number
LR15503
Flame Retardant
Yes
Material
Insulator: FR Polypropylene, U-Contact: Tin-plated brass
Maximum Operating Temperature (Fahrenheit)
221 Degree Fahrenheit
Maximum Wire Gauge
16 AWG
National Stock Number
5940013164522
Product Type
Connector
RoHS EU Comments
RoHS 2011/65/EU compliant without exemption
UL File Number
E23438
Wire Connector Type
IDC Connectors
Agency ApprovalsUL and CSA
ColorRed
Conductor Sizes22 - 16 AWG (Tap)
Connector StyleInsulation Displacement
FamilyIDC for Electrical Applications
Insulation MaterialPolypropylene
Maximum Operating Temperature (Celsius)105 Degree Celsius
Maximum Recommended Voltage Rating600 V
Minimum Wire Gauge22 AWG
PackagingBox
RoHS 2011/65/EU CompliantYes
TrademarkScotchlok
Voltage ApplicationLow Voltage
