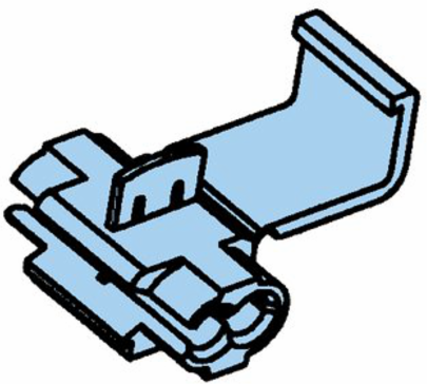

3M 560-BOX 3M Scotchlok Electrical IDC 560-BOX, Double Run or Tap, Flame Retardant, Light Blue, 18–16 AWG (solid/stranded), 14 AWG (stranded), 100 per carton, 1000 per case
- MPN: 560-BOX
- UPC: 054007008392
- PPN: MMM-560-BOX
CAD
$0.36
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
3M Scotchlok Electrical IDC 560-BOX, Double Run or Tap, Flame Retardant, Light Blue, 18–16 AWG (solid/stranded), 14 AWG (stranded), 100 per carton, 1000 per case
Specifications
Key Specifications
- 3M ID
- 80610031041
- Brand
- Scotchlok™
- Conductor Size
- 18 - 16 AWG / 14 AWG Stranded
- Connection Type
- Double Run or Tap
- CSA File Number
- LR15503
- Flame Retardant
- Yes
- Material
- Insulator: FR Polypropylene, U-Contact: Tin-plated brass
- Maximum Operating Temperature (Fahrenheit)
- 221 Degree Fahrenheit
- Maximum Wire Gauge
- 14 AWG Stranded
- National Stock Number
- 5940002649099
- Product Type
- Connector
- RoHS EU Comments
- RoHS 2011/65/EU compliant without exemption
- UL File Number
- E23438
- Wire Connector Type
- IDC Connectors
Agency ApprovalsUL and CSA
ColorLight Blue
Conductor Sizes18 - 16 AWG / 14 AWG Stranded
Connector StyleInsulation Displacement
FamilyIDC for Electrical Applications
Insulation MaterialPolypropylene
Maximum Operating Temperature (Celsius)105 Degree Celsius
Maximum Recommended Voltage Rating600 V
Minimum Wire Gauge18 AWG
PackagingBox
RoHS 2011/65/EU CompliantYes
TrademarkScotchlok
Voltage ApplicationLow Voltage
