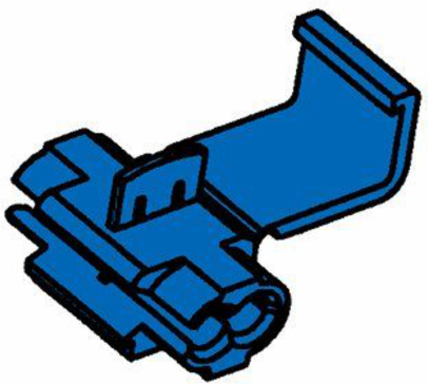

3M 560B-BOX 3M Scotchlok Electrical IDC 560B-BOX, Double Run or Tap, Flame Retardant, Blue, 18–16 AWG (solid/stranded), 14 AWG (stranded), 100 per carton, 1000 per case
- MPN: 560B-BOX
- UPC: 054007200901
- PPN: MMM-560B-BOX
CAD
$0.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
3M Scotchlok Electrical IDC 560B-BOX, Double Run or Tap, Flame Retardant, Blue, 18–16 AWG (solid/stranded), 14 AWG (stranded), 100 per carton, 1000 per case
Specifications
Key Specifications
- 3M ID
- 80610052765
- Brand
- Scotchlok™
- Conductor Size
- 18 - 16 AWG / 14 AWG Stranded
- Connection Type
- Double Run or Tap
- Family
- IDC for Electrical Applications
- Insulation Material
- Polypropylene
- Maximum Operating Temperature (Celsius)
- 105 Degree Celsius
- Maximum Recommended Voltage Rating
- 600 V
- Minimum Wire Gauge
- 18 AWG
- Product Type
- Connector
- RoHS EU Comments
- RoHS 2011/65/EU compliant without exemption
- UL File Number
- E23438
- Wire Connector Type
- IDC Connectors
Agency ApprovalsUL
ColorBlue
Conductor Sizes18 - 16 AWG / 14 AWG Stranded
Connector StyleInsulation Displacement
Flame RetardantYes
MaterialInsulator: FR Polypropylene, U-Contact: Tin-plated brass
Maximum Operating Temperature (Fahrenheit)221 Degree Fahrenheit
Maximum Wire Gauge14 AWG Stranded
PackagingBox
RoHS 2011/65/EU CompliantYes
TrademarkScotchlok
Voltage ApplicationLow Voltage
