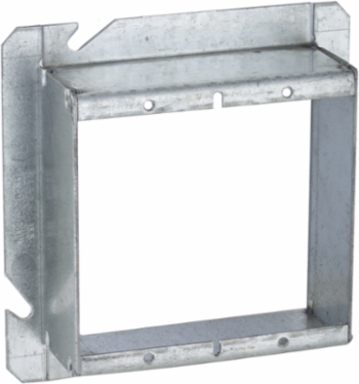

Raco 885 4-11/16 Inch Square Cover 2-Device Mud Ring, 1-1/2 Inch Raised
- MPN: 885
- UPC: 050169008850
- PPN: HBL-885
- UNSPSC: 39121304
CAD
$10.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
4-11/16 in. Square Cover, 2-Device, 1-1/2 in. Raised
Features
- Partition divides 4 in. square boxes into two compartments
- Use partitions with two-device covers which have a slot for the partition
- Helpful hint: Assemble the box with the partition in place before breaking off at the scored tab. This will prevent you from breaking off more tab than needed
- Includes required hardware for mounting the receptacle
- Accepts single 1.594 in. diameter receptacle
- Installation instructions on polybag
- 10.3 cu. in. capacity
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Description - Slang | Square Cover |
| Height | 4.688 in |
| Product Type | Cover |
| Cubic Capacity | 15.5 cu.in |
| Size | 1.5 in x 4.688 in x 4.688 in |
| Type | Mud Ring |
| Width | 4.688 in |
| Class Code | D01 |
| Freight Class Code | 06202000 |
| Image Actual Or Representative | A |
| Order Multiple | 20 EA |
| Stock Indicator | S - Shelf Stock |
| Drawn or Welded | Welded |
| Material | Steel |
| Raised Height | 1.50 in |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 12.56 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 20 EA |
| Lowest Level UOM | Each |
| Pallet - Number of Sub Packs | 80 |
| Pallet - SCC-14 Next Lower Level Sub Pack | 50050169008855 |
| Pallet Height | 46.875 in |
| Pallet Weight | 1049.800 lb. |
| NAICS Code | 3359326102 |
| ChannelSightWidgetId | 705 |
|---|---|
| Dimensions | 1.5 in x 4.688 in x 4.688 in |
| Length | 1.5 in |
| Color | Gray |
| Shape | Square |
| Standard | cULus Listed |
| Weight | 0.628 lb. |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | 4-11/16SQ MUDRG 2)DEV 1-1/2RSD |
| Harmonization Code | 7326908688 |
| MSDS Flag | Yes |
| Returnable Indicator | Yes |
| Sub Class Code | D011D0112 |
| Paintable/Stainable | No |
| Number of Gang(s) | 2-Gang |
| Proposition 65 Warning Required | No |
| BOX SIZE | 10x11.125x8.5 (in) |
| Carton - Number of Sub Packs | 20 |
| Carton - SCC-14 Next Lower Level Sub Pack | 50169008850 |
| Each - Pack Description | Each |
| Pallet - GTIN - Package | 70050169008859 |
| Pallet - Pack Description | Pallet |
| Pallet - Total Units | 1600 EA |
| Pallet Length | 42.000 in |
| Pallet Width | 48.000 in |
Certifications
| Buy American Compliant | Yes |
|---|
| Certified Listed | cULus Listed |
|---|
