Schneider Electric NSYSBTB Adjustable Steel Fixing Brackets for Mounting Plates, 90 mm Height, Set of 4
- MPN: NSYSBTB
- PPN: SCH-NSYSBTB
- UNSPSC: 39121302
CAD
$68.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

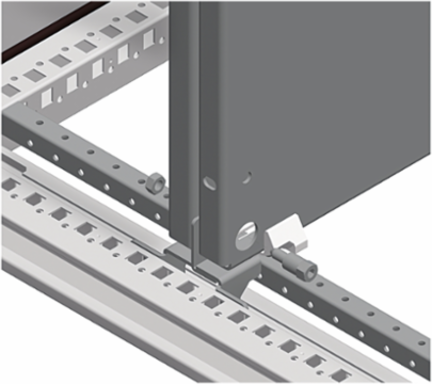

Spacial SF brackets for fixing mounting plates back to back. . Mounting location is On structure of enclosure, On 2 mounting plates back to back position. Adjustable with a pitch of 25 mm. Fixing by elements. Steel made, zinc coated surface finish. 4 brackets included.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France |
|---|---|
| Width | 4.72 in |
| Depth | 185 mm |
| Height | 3.54 in |
|---|---|
| Weight | 790 g |
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Device Composition | 4 bracket, fixing elements |
| Mounting Location | on structure of enclosure, on 2 mounting plates back to back position |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 2 kg CO2 eq., 1.857169607 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 3 kg CO2 eq., 3.432643588 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Application | multi-purpose |
| Fixing Mode | by fixing element |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Or Component Type | fixing bracket |
| Range | PanelSeT |
| Software Version | v5.9.4 |
| Sustainable Packaging | No |
| Database Version | 2022-01 |
| Height Nominal | 90 mm |
| Width Nominal | 120 mm |
| Accessory / Separate Part Category | mounting accessory |
| Customs Code | 7326908688 |
| Functional Unit Description | Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208. |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 98 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Enclosure Nominal Dimensions | -, - |
| Carbon Footprint Of The Distribution Phase A4 | 0.152073645, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.175169855, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | kg CO2 eq., 0 |
| Local Publishable Date | 2026-04-15 |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1916 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Adjustment | adjustable with a pitch of 25 mm |
| Energy Efficiency Optimized | False |
| Material | steel |
| Product Destination | for mounting plate |
| Quantity Per Set | set of 1 |
| Returnability | No |
| Surface Finish | zinc coated |
| Total Lifecycle Carbon Footprint | 6 kg CO2 eq. |
| Data Source | extrapolated product |
| Height Useful | 90 mm |
| Width Real | 120 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 5.617056695 |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-03-30 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1109023EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP1109023EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | fixing bracket |
|---|
ETIM
| ETIM 8 | EC002620 |
|---|---|
| ETIM 10 | EC002620 |
| ETIM 9 | EC002620 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
