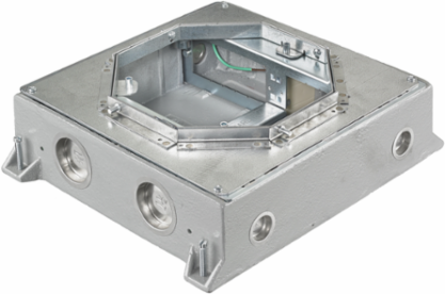

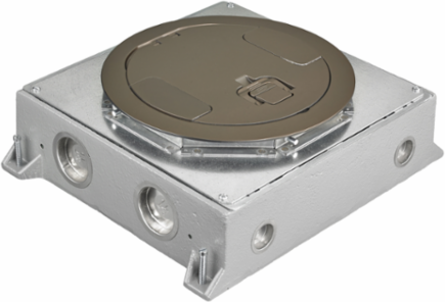

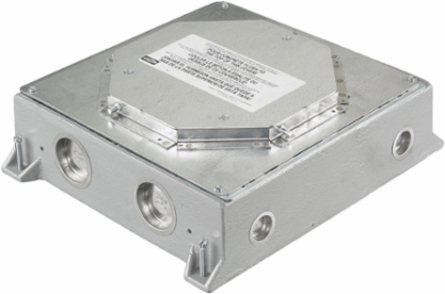

Hubbell Premise Wiring CFB4G30RCI 4-Gang Recessed Floor Box, 4.00 Inch Depth, Cast Iron, Round Cover
- MPN: CFB4G30RCI
- UPC: 783585447315
- PPN: HBL-CFB4G30RCI
- UNSPSC: 39121307
CAD
$779.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SystemOne ETERNAL™ Series Concrete Floorboxes, Cast Iron Box, Recessed, 4-Gang CFB Series Box for Round Covers, 4.00" Minimum Depth of Pour, Corrosion Resistant Paint
Features
- Corrosion-Resistant Cast Iron Round 4-Gang Rectangular Cover Floorbox
- For Use In Concrete Floors
- 4.00" Minimum Depth of Pour
- Box Includes Installtion Cover
- Each Gang Includes (1) 6" Solid #12 AWG Conductor Grounding Pigtail
- Cast Iron Box with Corrosion Resistant Paint; Threaded Hubs
Documentation & Downloads
Specifications
Additional
| Material | Cast Iron |
|---|---|
| Length | 13.19 in |
| Height | 4.00 in |
| Mounting Type | Field Installed Screw Mount Device Mounting Plates |
| Finish | Gray corrosion resistant epoxy paint |
| Concrete Cover Material | 16 gauge galvanized steel |
| Wiring Chamber Depth | 2.71 in |
| Compliance | cULus Listed, UL 514A Listed |
| Country of Origin | US |
| Number of Gangs | 4-Gang |
| Size | 13.19 in x 11.44 in x 4.00 in |
|---|---|
| Width | 11.44 in |
| Weight | 28.45 lb. |
| Thread Size | 4 x 11 2 in NPT |
| Top Mounting Plates Material | 16 gauge galvanized steel |
| Device Chamber Grounding | 6 in Long #12 AWG Solid Copper Wire |
| Wiring Chamber Volume | 4 x 30.0 in3 |
| Standard | cULus; UL514 |
| Application | For Use in Concrete Floors |
| Color | Metallic/Green Epoxy Paint |
