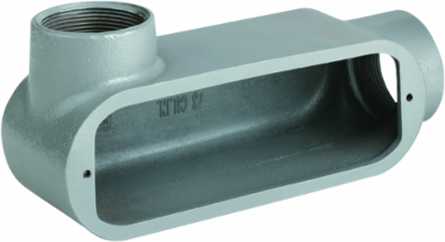

Killark OLL-0M 4 Inch LL Hub Malleable Iron Conduit Body, Raintight, 324 cu. in Volume
Killark OLL-0M 4 Inch LL Hub Malleable Iron Conduit Body, Raintight, 324 cu. in Volume
- MPN: OLL-0M
- UPC: 783936480619
- PPN: HBL-OLL-0M
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1458.18/ EA
Description
4" LL Hub, Iron O Series Conduit Body
Features
- Raintight when used with gasketed covers.
- Malleable iron suitable for use in concrete.
- Interchangeable with competitive products.
- Stainless steel screws on stamped and cast covers.
- Tapered threaded hubs (NPT).
- Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Malleable iron suitable for use in concrete. Interchangeable with competitive products. Volume is 324 cu. in.
Specifications
Certifications
- EU RoHS Indicator
- Contact Manufacturer
Specifications
- Country of Origin
- IN
- Each - Width
- 11.000 in
- Application
- To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
- Height
- 8.25 in
- Length
- 19 in
- Type
- Conduit Body
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- DURALOY 4" LL COND BDY FE
- Harmonization Code
- 7307199060
- Lead Time
- 70 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D230
- Gross Weight with Packaging
- 23.76
- UL File Number
- E3397
- Series
- O Series
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936480619
Dimensions19 in x 11 in x 8.25 in
Hazardous Rating(s)Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
ColorGray
Hub Size4"
Special FeaturesTapered threaded hubs (NPT). Raintight when used with gasketed covers. Malleable iron suitable for use in concrete. Interchangeable with competitive products. Volume is 324 cu. in.
Width11 in
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11852
Hub PatternLL
MaterialIron
Base Unit of MeasureEA
Master Pack DescriptionEach
