Tripp Lite U223004IND1 Industrial-Grade USB 2.0 Hub, 4-Port, 15 kV ESD Immunity, Metal Housing, Wall/DIN Mountable

MPN: U223004IND1
UPC: 037332253026
PPN: TRP-U223-004-IND-1

$115.98

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

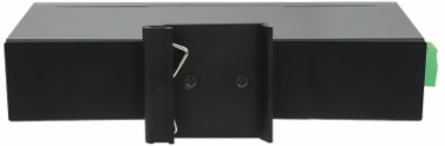

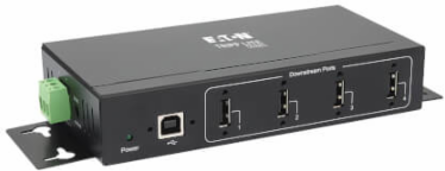

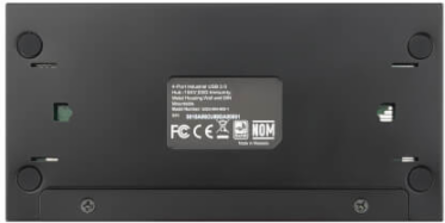

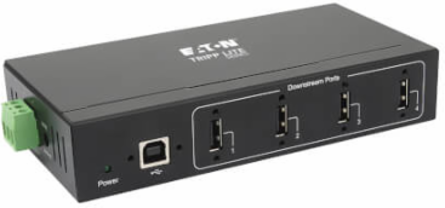

4-Port Industrial-Grade USB 2.0 Hub - 15 kV ESD Immunity, Metal Housing, Wall/DIN Mountable

Features

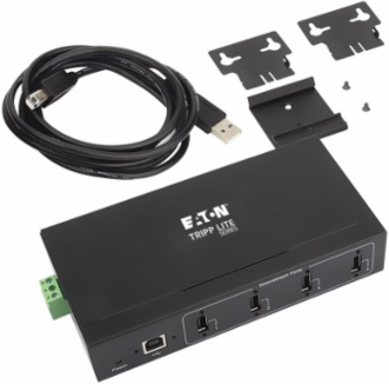

4-Port Industrial-Grade USB 2.0 Hub
3-pin power terminal block
USB-A to USB-B cable

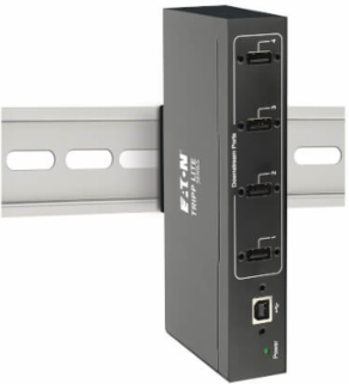

DIN rail-mounting hardware
Wall-mounting hardware
Owner's manual

Documentation & Downloads

Specifications

Reference

Product Type	Hub
Extended Mode	No
USB Specification	USB 2.0 (up to 480 Mbps)
Product Warranty Period	2-year limited warranty

Technology	USB 2.0 (High Speed)
USB Hub Ports	Yes
TAA Compliant Option	N

Performance

Operating Temperature Range	32° to 140°F (0° to 60°C)
Relative Humidity	5 - 90 % RH, Non-Condensing

Storage Temperature Range	14° to 176°F (-10° to 80°C)

Dimensions

Number of Ports	4
Data Ports	(4) USB A (Female)
Product Length	6.22 in
Side A - Connector 1	USB B (Female)
Unit Dimensions	1.260 x 3.150 x 6.220 in

Host Connector	USB A (Male)
Data Ports Details	(4) USB-A - USB 2.0
DC Barrel Plug	OD: 5.5 x 2.1 x 9.5mm, Positive Pin, Negative Sleeve
Side B - Connector 1	(4) USB A (Female)
Unit Weight	0.70 lb
