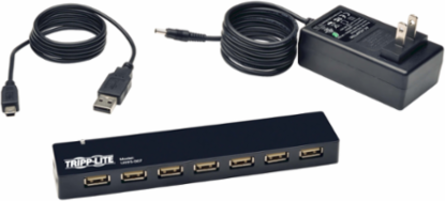

Tripp Lite U223-007 7-Port USB 2.0 Hub, USB Mini-B 5-Pin Input, 480 Mbps, 3-Year Warranty
- MPN: U223-007
- UPC: 037332185389
- PPN: TRP-U223-007
CAD
$54.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
7-Port USB 2.0 Hub, USB Mini-B 5-Pin Input, 480 Mbps, 3-Year Warranty
Features
- Connects up to 7 USB 2.0 devices
- Bus-powered or optional AC adapter
- Compatible with all major operating systems
- 3-year limited warranty
Documentation & Downloads
Specifications
Features & Specifications
- USB Specification
- USB 2.0 (up to 480 Mbps)
- Technology
- USB 2.0 (High Speed); USB
Driver RequiredNo
Certifications
- Certifications
- Tested to CE, FCC, RoHS, REACH
Connections
- Ports
- 7
- Side B - Connector 1
- (7) USB A (FEMALE)

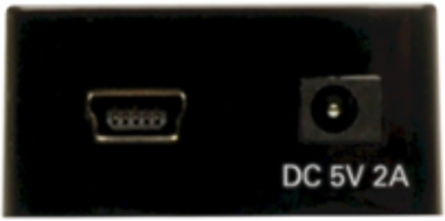

Side A - Connector 1USB MINI-B 5-PIN (FEMALE)
Connector PlatingNickel
Physical
- Color
- Black
- Shipping Dimensions (hwd / in.)
- 2.10 x 3.10 x 7.50
- Unit Dimensions (hwd / in.)
- 0.6 x 6.5 x 1.3
- Unit Weight (lbs.)
- 0.14
Material of ConstructionABS
Shipping Weight (lbs.)0.70
Unit Packaging TypeBox
User Interface, Alerts & Controls
- LED Indicators
- Blue (Power)
Input
- Voltage Compatibility (VAC)
- 100; 110; 120; 127; 200; 208; 220; 230; 240
- External Power Supply Output Specs (V / A)
- 5V / 2A
- External Power Supply DC Barrel Connector Specs
- OD: 3.5 x 1.35 x 8mm, Positive Pin, Negative Sleeve
- External Power Supply Certifications
- DOE; FCC; UL
External Power Supply Input Specs (V / Hz / A)100-240V / 50/60Hz / 0.4A
External Power Supply Cord Length (ft.)4
External Power Supply Plug(s)NEMA 1-15P North America
Bus PoweredNo
Environmental
- Operating Temperature Range
- 32 to 158 F (0 to 70 C)
- Relative Humidity
- 10% to 90 % RH, Non-Condensing
- Power Consumption (Watts)
- 0.3
Storage Temperature Range14 to 194 F (-10 to 90 C)
BTUs1 BTU/Hr
Power Provided to Connected Device(s)5V 0.5A (2.5W) Output per USB port
Overview
- UPC Code
- 037332185389
Warranty
- Product Warranty Period (Worldwide)
- 3-year limited warranty
