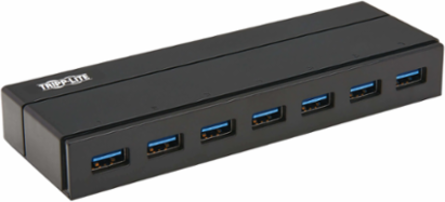

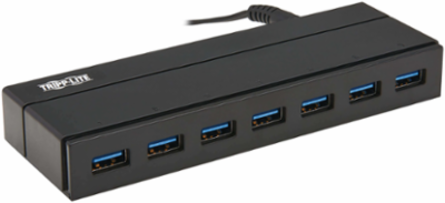

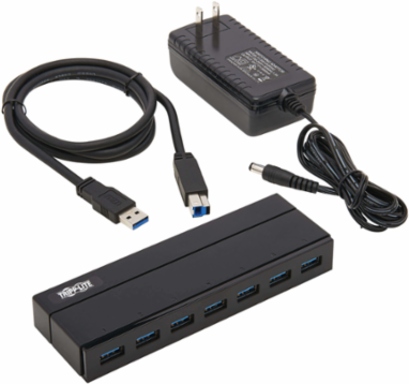

Tripp Lite U360-007 7-Port USB 3.0 Hub with BC 1.2 Charging, 5V 2.4A Output
Tripp Lite U360-007 7-Port USB 3.0 Hub with BC 1.2 Charging, 5V 2.4A Output
- MPN: U360-007
- UPC: 037332178480
- PPN: TRP-U360-007
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$118.21/ EA
Features

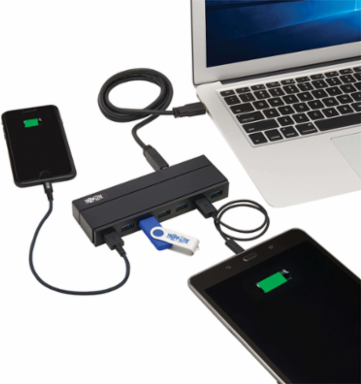

- Adds webcam, flash drive, scanner—up to 7 devices—to your host computer
- USB 3.0 ports support SuperSpeed rates up to 5 Gbps to ensure fast data transfers
- 7 USB-A ports support BC 1.2 specifications for charging mobile devices at 5V 2.4A
- Compact unit works with USB-enabled operating systems, including Windows and Mac
- Plug-and-play operation with no software required for easy, immediate installation
- 3-year limited warranty
- USB 3.0 Hub Adds up to 7 USB Devices to Your Computer, MacBook or Chromebook
- Supports SuperSpeed USB 3.0 to Ensure Fast Data Transfers and Device Charging
- Plug-and-Play Hub Comes Ready to Connect Right Away
- Sleek and Slim Housing Designed for Everyday Workspace Use or Connecting on the Go
Specifications
Features & Specifications
- USB Specification
- USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps)
- Technology
- USB; USB 3.0 (SuperSpeed)
Driver RequiredNo
Certifications
- Certifications
- Tested to FCC
Connections
- Ports
- 7
- Side B - Connector 1
- (7) USB 3.0 A (FEMALE)
Side A - Connector 1USB 3.0 A (MALE)
Connector PlatingNickel
Physical
- Color
- Black
- Shipping Dimensions (hwd / in.)
- 5.51 x 5.91 x 3.54
- Unit Dimensions (hwd / in.)
- 0.87 x 6.1 x 2
- Unit Weight (lbs.)
- 0.00
Material of ConstructionABS
Shipping Weight (lbs.)0.79
Unit Packaging TypeBox
User Interface, Alerts & Controls
- LED Indicators
- Blue (Power)
Input
- Voltage Compatibility (VAC)
- 100; 110; 120; 127; 200; 208; 220; 230; 240
- External Power Supply Output Specs (V / A)
- 12V / 3A
- External Power Supply DC Barrel Connector Specs
- OD: 5.5 x 2.5 x 10mm, Positive Pin, Negative Sleeve
- External Power Supply Certifications
- cUL; RoHS
External Power Supply Input Specs (V / Hz / A)100-240V / 50/60Hz / 1.5A
External Power Supply Cord Length (ft.)5
External Power Supply Plug(s)NEMA 1-15P North America
Bus PoweredNo
Output
- Charging Ports / Amps
- (1) 2A
Environmental
- Operating Temperature Range
- -4 to 158 F (-20 to 70 C)
- Relative Humidity
- 20% to 80% RH, Non-Condensing
- Power Consumption (Watts)
- 1.4
Storage Temperature Range-4 to 185 F (-20 to 85 C)
BTUs4.8 BTU/Hr
Power Provided to Connected Device(s)5V 0.9A (4.5W) Output (USB-A 3.0), 5V 2A (10W) Output (USB 2A Charger)
Overview
- UPC Code
- 037332178480
- Over Current Protection
- 2.93A
AC AdapterInput: 100-240V, 50/60Hz, 0.8A Max / Output: 12V, 2A
Warranty
- Product Warranty Period (Worldwide)
- 3-year limited warranty
Downloads
