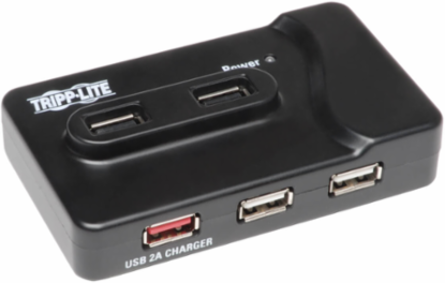

Tripp Lite U360-412 6-Port USB 3.0 Charging Hub with 2x USB 3.0, 4x USB 2.0, 1 2A Charging Port
- MPN: U360-412
- UPC: 037332173560
- PPN: TRP-U360-412
CAD
$61.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Charge an iPad or tablet via a USB hub.
Features

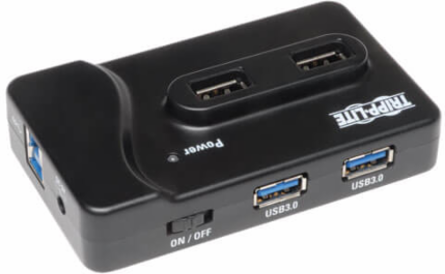

- USB 3.0 Hub with two USB 3.0 SuperSpeed ports and four USB 2.0 High-Speed ports
- One dedicated port for Tablet charging ( 5V, 2A )
- USB 3.0 ports support up to 900mA per port
- USB 2.0 ports support up to 500mA per port
- Plug-and-Play - no software or drivers required
- 3-year limited warranty
Documentation & Downloads
Specifications
Features & Specifications
- USB Specification
- USB 2.0 (up to 480 Mbps); USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps)
- Technology
- USB 3.0 (SuperSpeed); USB
Driver RequiredNo
Certifications
- Certifications
- Tested to CE, FCC, RoHS, REACH
Connections
- Ports
- 7
- Side B - Connector 1
- (2) USB 3.0 A (FEMALE)
- Connector Plating
- Nickel
Side A - Connector 1USB 3.0 A (MALE)
Side B - Connector 2(5) USB A (FEMALE)
Physical
- Color
- Black
- Shipping Dimensions (hwd / in.)
- 3.00 x 4.60 x 5.50
- Unit Dimensions (hwd / in.)
- 1 x 4 x 2.25
- Unit Weight (lbs.)
- 0.18
Material of ConstructionABS
Shipping Weight (lbs.)0.90
Unit Packaging TypeBox
User Interface, Alerts & Controls
- LED Indicators
- Blue (Power)
Input
- Voltage Compatibility (VAC)
- 100; 110; 120; 127; 200; 208; 220; 230; 240
- External Power Supply Output Specs (V / A)
- 5V / 4A
- External Power Supply DC Barrel Connector Specs
- OD: 3.5 x 1.35 x 10mm, Positive Pin, Negative Sleeve
- External Power Supply Certifications
- FCC; UL; cUL; RoHS
External Power Supply Input Specs (V / Hz / A)100-240V / 50/60Hz / 0.6A
External Power Supply Cord Length (ft.)5
External Power Supply Plug(s)NEMA 1-15P North America
Output
- Charging Ports / Amps
- (1) 2A
Environmental
- Operating Temperature Range
- -4 to 158 F (-20 to 70 C)
- Relative Humidity
- 20% to 80% RH, Non-Condensing
- Power Consumption (Watts)
- 1.6
Storage Temperature Range-4 to 185 F (-20 to 85 C)
BTUs5.5 BTU/Hr
Power Provided to Connected Device(s)5V 0.5A (2.5W) Output (USB-A 2.0), 5V 0.9A (4.5W) Output (USB-A 3.0), 5V 2A (10W) Output (USB 2A Charger)
Overview
- UPC Code
- 037332173560

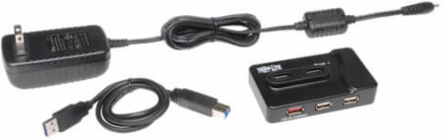

AC AdapterInput: 100-240V, 50/60Hz, 0.9A; Output: 5V, 4A
Warranty
- Product Warranty Period (Worldwide)
- 3-year limited warranty
