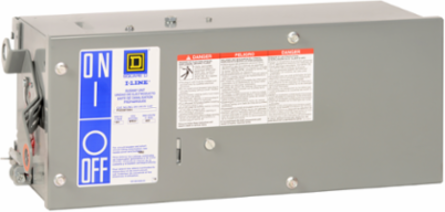

Square D PHJ36020G Plug-in Unit I-Line Busway H-Frame 20A 3-Phase 600V 25kA
- MPN: PHJ36020G
- PPN: SCH-PHJ36020G
- UNSPSC: 39131702
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Engineered for efficient power distribution, this plug-in unit from Schneider Electric is an essential component of the I-Line Busway system. Designed to accommodate 20A in a 3-phase configuration at 600V, it provides robust electrical performance with a short-circuit current rating of 25kA. Its H-Frame design ensures compatibility and reliability, making it an excellent choice for industrial applications that require precise and safe power management. With this unit, you can enhance the versatility and efficiency of your power distribution framework.
Documentation & Downloads
Specifications
Key Specifications
| Module Type | H-Frame |
|---|---|
| Product Or Component Type | plug-in unit |
| Range Of Product | I-Line |
|---|
Complementary
| Disconnector Device Type | thermal magnetic circuit breaker 20 A 25 kA 600 V || thermal magnetic circuit breaker 20 A 65 kA 480 V || thermal magnetic circuit breaker 20 A 100 kA 240 V |
|---|---|
| Busbar Description | ground |
| Breaking Capacity Code | J |
| Wiring Configuration | 3-wire |
| [Ue] Rated Operational Voltage | 600 V AC 50/60 Hz |
|---|---|
| Level Or Class | class 5600 |
| Fuse Type | H |
| Phase | 3 phase |
Environment
| Product Certifications | UL || CSA |
|---|
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Rohs Exemption Information | Yes |
| Environmental Disclosure | ENVPEP1410002EN |
| Eu Rohs Directive | Compliant with Exemptions |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Circularity Profile | N/A |
|---|---|
| Mercury Free | Yes |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
