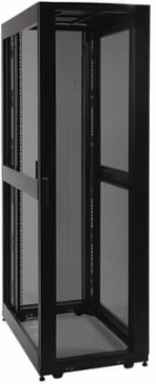

Tripp Lite SR45UBSD 45U Shallow-Depth Rack Enclosure Cabinet, 3000 lb Capacity, 32 Inch Depth
- MPN: SR45UBSD
- UPC: 037332174895
- PPN: TRP-SR45UBSD
CAD
$3509.39
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

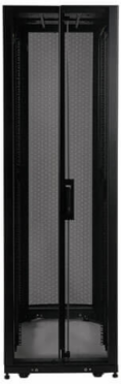

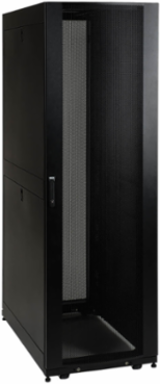

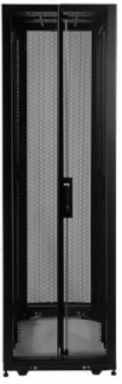

45U Shallow-Depth Rack Enclosure Cabinet, 3000 lb Capacity, 32 Inch Depth
Features
- Ideal for shallow depth A/V equipment or any venue with limited floorspace
- 32" (825mm) depth (with mounting depth increments of 4 to 27") and standard 24" (600mm) width
- Ships fully assembled
- 3000 lb stationary / 2250 lb rolling load capacity

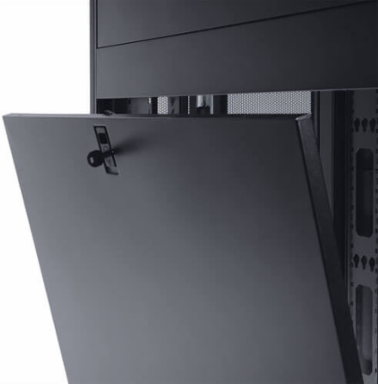

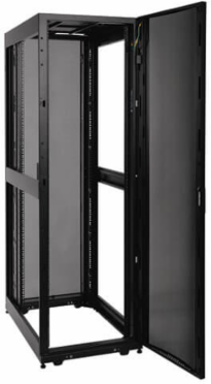

- Locking, removable, reversible front and rear doors; Locking, removable side panels keyed alike with doors

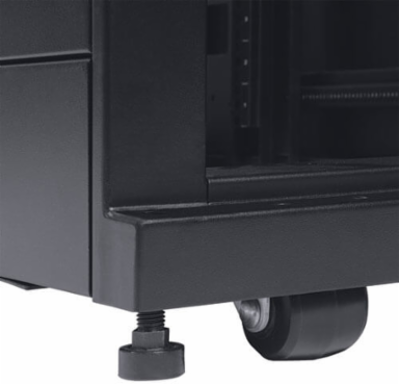

- Preinstalled casters and leveling feet
- Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance
- 5-year limited warranty
Documentation & Downloads
Specifications
Additional
- Weight Capacity - Stationary
- 3000 lb
- Maximum Device Depth
- 27 in.
- Rack Height
- 45U
- Unit Dimensions (H x W x D)
- 83.75 x 23.63 x 32.48 in.
- Width
- 24 in.
- Factory Preset Rack Depth
- 19.25 in.
- Grounding Lug
- Front and back door frames
- Certifications
- UL60950, RoHS, CE, IP20
- Mounting Hole Type
- Square
- Access
- Locking, reversible, removable front and rear doors; Locking, removable side panels keyed alike
- Casters
- Preinstalled, removable
- Ventilation

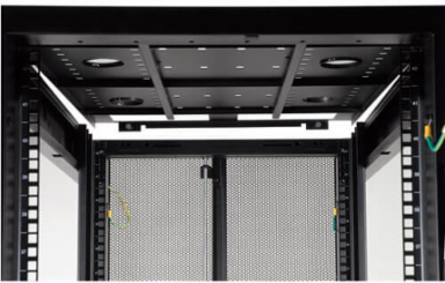

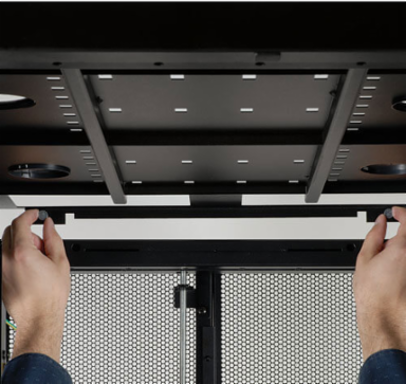

- Vented top panel with cable ports; 65+% open perforated door pattern
- Grounding

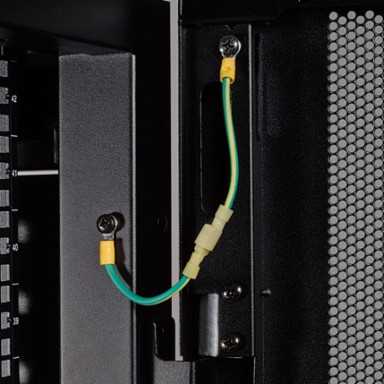

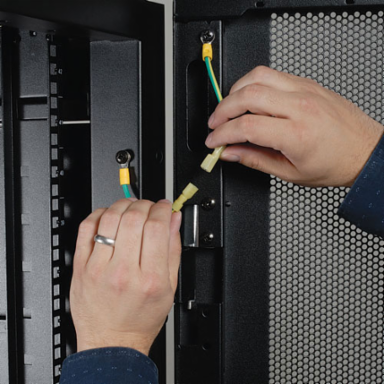

- Front and rear threaded grounding points; quick-release ground wires on doors
Weight Capacity - Rolling2250 lb
Minimum Device Depth4 in.
Rack DepthShallow
Unit Weight232 lb
Depth32 in.
ColorBlack
ApprovalsEIA/ECA-310-E
Material FinishTextured powder coat
Mounting Hole Adjustment Increment0.25 in.
Side Panel SizeHalf size
Leveling FeetAdjustable, removable

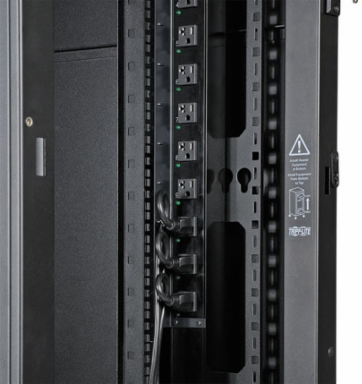

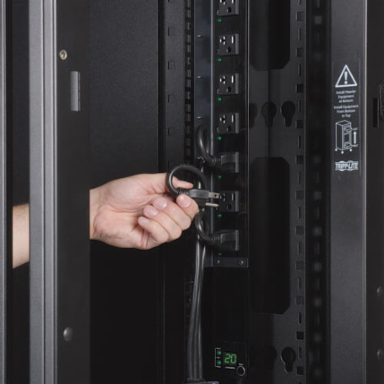

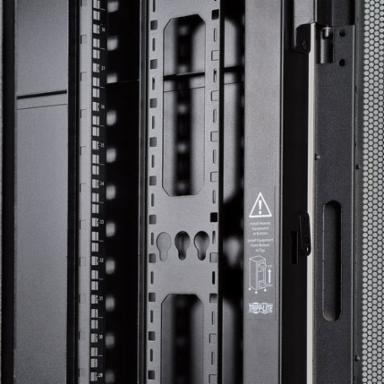

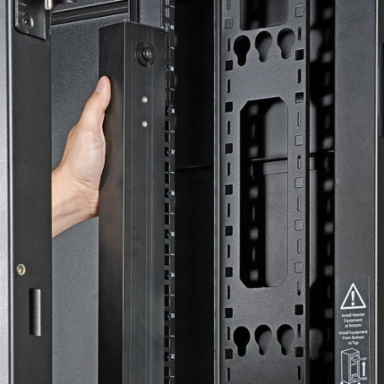

Cable ManagementBuilt-in tool-less 0U installation on vertical rails for up to four PDUs or cable managers
Product Warranty Period (Worldwide)5-year limited warranty
