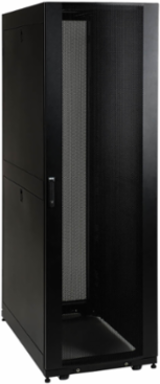

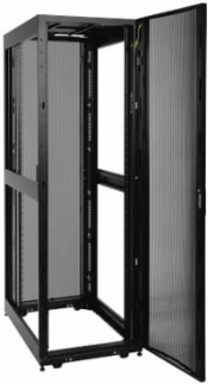

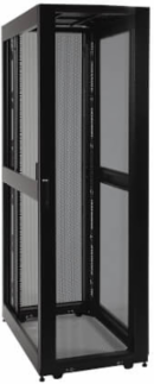

Tripp Lite SR45UBMD 45U Mid-Depth Rack Enclosure Cabinet, 3000 lb Capacity, 36 Inch Depth, Black
- MPN: SR45UBMD
- UPC: 037332174475
- PPN: TRP-SR45UBMD
CAD
$3541.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

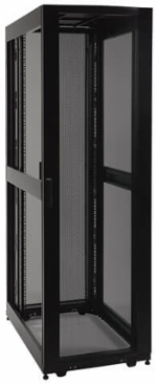

45U Mid-Depth Rack Enclosure Cabinet, 3000 lb Capacity, 36 Inch Depth, Black
Features
- 45U SmartRack enclosure with doors and side panels
- 36" (927mm) depth (with mounting depth increments from 4 to 31") and standard 24" (600mm) width

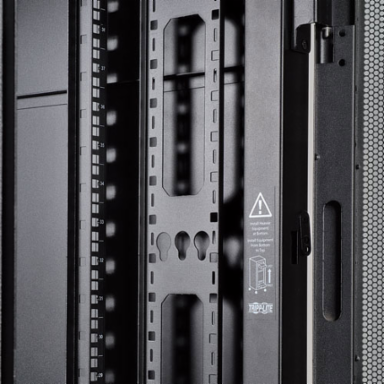

- 4 interior vertical posts with unthreaded square hole openings
- Ships fully assembled
- Massive front to rear ventilation capacity
- 3000 lb stationary / 2250 lb rolling load capacity

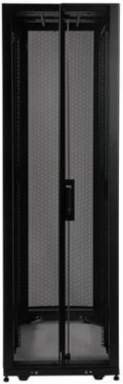

- Locking, removable, reversible front and rear doors

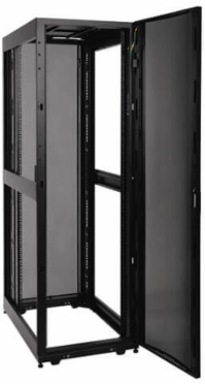

- Locking, removable side panels keyed alike with doors
- Pre-installed casters and leveling feet
- Includes 50 pieces of M6 cage nuts and 50 pieces of M6 screws (equipment mounting hardware)
- Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance
- 5-year limited warranty
Documentation & Downloads
Specifications
Additional
- Weight Capacity - Stationary
- 3000 lbs
- Maximum Device Depth
- 31 in.
- Rack Height
- 45U
- Unit Dimensions (HWD)
- 83.75 x 23.63 x 36 in.
- Unit Weight
- 285 lbs
- Material Finish
- Textured powder coat
- Vertical Posts
- 4 interior, unthreaded square hole openings
- Side Panels

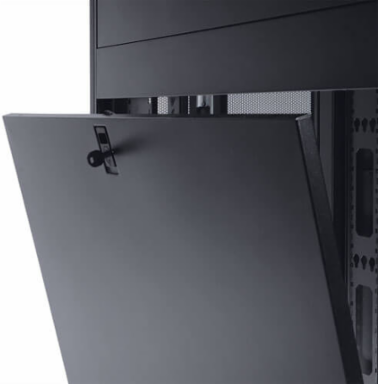

- Locking, removable, half size, keyed alike with doors

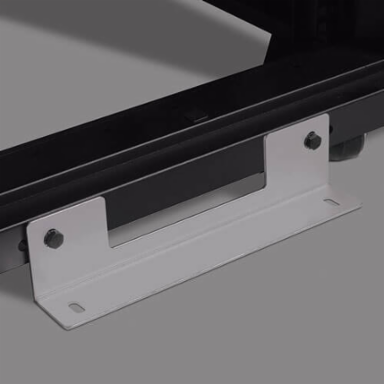

- Baying Tabs
- Integrated for secure row combination
- Cable Access
- Open bottom and top panel ports
- Approvals
- EIA/ECA-310-E
- Grounding

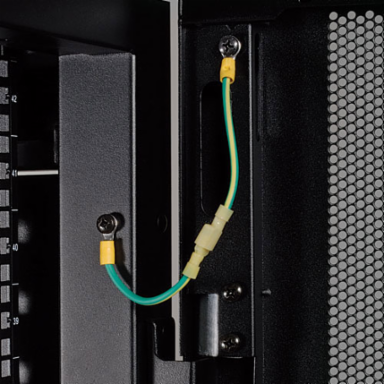

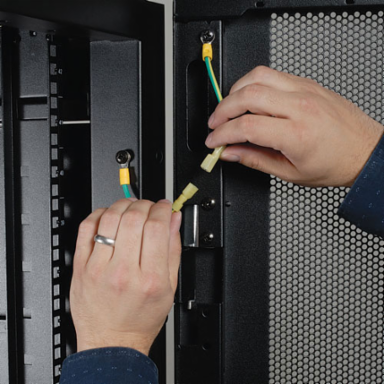

- Front and back door frames with quick-release ground wires

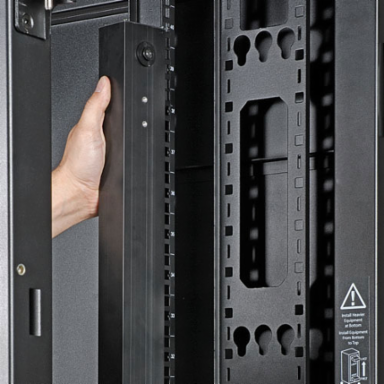

- Built-in Cable Management
- Yes
Weight Capacity - Rolling2250 lbs
Minimum Device Depth4 in.
Rack Depth22.75 in. (Factory Preset)
Shipping Dimensions (HWD)84 x 26 x 40 in.
Shipping Weight335 lbs
Mounting RailsAdjustable in 1/4 in increments from 4 to 31 in
DoorsLocking, removable, reversible front and rear

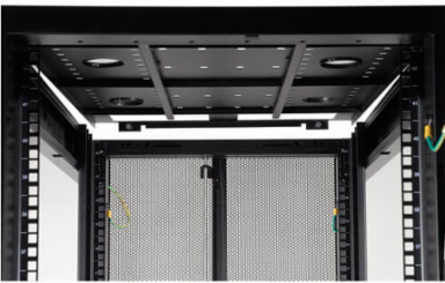

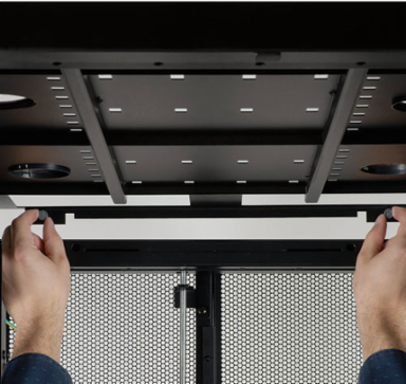

Top PanelVented with cable routing ports, removable without tools

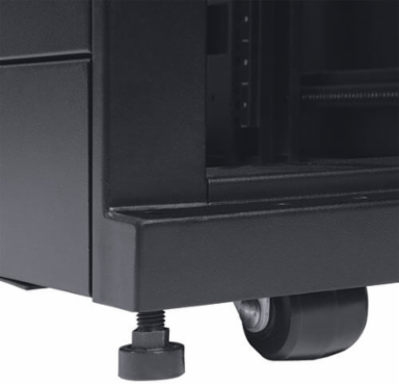

Casters and Leveling FeetPre-installed removable casters; leveling feet removable
CertificationsUL60950; RoHS; CE; IP20 Protection Rating
Warranty5-year limited warranty
ColorBlack
Rack TypeEnclosure
