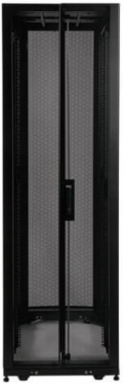

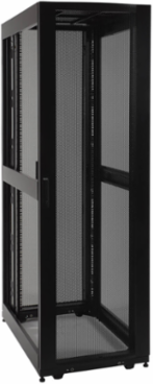

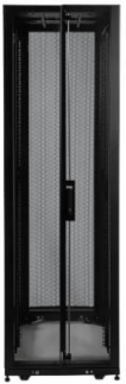

Tripp Lite SR45UBEXP 45U Rack Enclosure Cabinet, 3000 lb Capacity, 27.75 Inch Depth
- MPN: SR45UBEXP
- UPC: 037332174772
- PPN: TRP-SR45UBEXP
CAD
$3131.33
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
45U Rack Enclosure Cabinet, 3000 lb Capacity, 27.75 Inch Depth
Features
- 45U SmartRack enclosure with doors and NO side panels. 'EXP' version is an expansion model for when several cabinets are bayed together
- 4 interior vertical posts with unthreaded square hole openings
- Standard 24" (600mm) width and 42" (1050mm) depth for optimizing floor space
- Ships fully assembled
- Massive front to rear ventilation capacity
- 3000 lb stationary / 2250 lb rolling load capacity
- Locking, removable, reversible front and rear doors
- 5-year limited warranty
Documentation & Downloads
Specifications
Additional
- Weight Capacity - Stationary
- 3000 lb
- Maximum Device Depth
- 37 in.
- Rack Height
- 45U
- Rack Depth
- 27.75 in.
- Depth
- 42 in.
- Material Finish
- Textured powder coat
- Mounting Rail Adjustment
- Adjustable in 1/4 in. increments from 4 to 37 in.
- Side Panels
- Not included
- Top Panel
- Vented with cable routing ports, removable without tools
- Grounding
- Front and rear threaded grounding points, all components grounded to enclosure frame
- Compliance Standard
- EIA/ECA-310-E
- Color
- Black
Weight Capacity - Rolling2250 lb
Minimum Device Depth4 in.
Unit Dimensions (H x W x D)83.75 x 23.63 x 43 in.
Width24 in.
Weight223 lb
Mounting Hole TypeUnthreaded square holes
DoorsLocking, removable, reversible front and rear
CastersPreinstalled, removable, for minor position adjustments
Bottom PanelOpen for cable access
CertificationsUL60950, RoHS, CE
Warranty5-year limited
