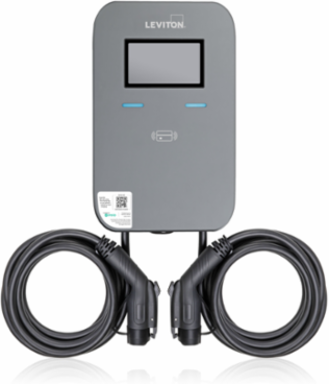

Leviton EV48S-DP 48 Amp Dual Port Level 2 Electric Vehicle Charging Station, Charging Station Management Software and LCD Screen
- MPN: EV48S-DP
- UPC: 078477024188
- PPN: LEV-EV48S-DP
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

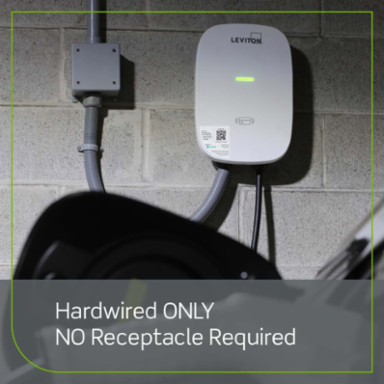

EV Series Pro Dual Port Level 2 Electric Vehicle Charging Station, 48A, 208/240 VAC, 11.6kW Output, J1772 Charge Connector, 25' Cord, Includes Mounting Bracket and Pre-Attached Input Cable, HARDWIRED ONLY, Features AmpUp Charging Station Management Software and LCD Screen, Features Dual Power Output, OCCP 2.0 Compliant. CTEP Compliant, IS015118-2 Compliant
Features

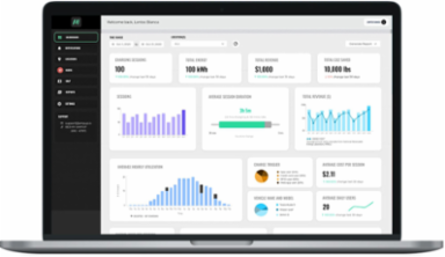

- MULTI-STATION, MULTI-SITE MANAGEMENT FOR SITE HOSTS – Featuring AmpUp Charging Station Management Software, these stations include real time analytics, the ability to set pricing groups and collect revenue, smart scheduling, advanced access control/RFID, power load management, automated reporting, and more
- DUAL POWER OUTPUT - Get up to 48 Amps per port!
- IMPROVED EXPERIENCE FOR EV DRIVERS - The AmpUp software makes EV charging effortless for drivers by providing the ability to locate charging stations, reserve spots, initiate sessions, and more
- THE BRAND YOU TRUST – Leviton has been in homes for over a century and electrifying vehicles for over a decade. Charge at ease with UL/Energy Star Certified stations supported by a 24/7 dedicated team
- FOR ANY APPLICATION – featuring a water-resistant enclosure rated NEMA Type 3R and a cable designed to prevent freezing and cracking in extreme weather, you can install both indoors and outdoors

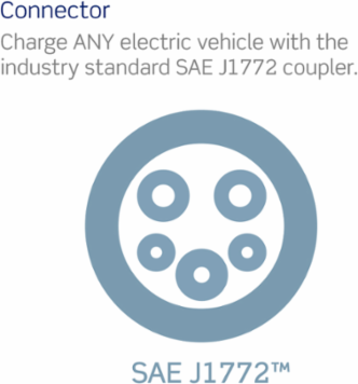

- CHARGE ANY ELECTRIC VEHICLE – with an industry standard SAE J1772™ cable, the EV Series can charge any EV, including Audi, BMW, Ford, Honda, Subaru, and even Tesla with Leviton's NACS Adapter (part number NACSA)
- UNIVERSAL COMPATIBILITY – Every pedestal works effortlessly with all EV Series Hardwired Units, making it easy to customize your charging setup for any location For mounting with Leviton's Dual Mount Pedestal (EPED2) utilize accessory APED2 For mounting with Leviton's Pedestal with Retractable Cable Management (EPCM1 and EPCM3) utilize accessory APCMX Have Questions? Search the knowledge base. Take advantage of government rebates and incentives.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Please Contact Customer Service
RoHS CompliantFalse
Standards and Certifications
- Applicable Standards
- UL2594| UL 2231-1| UL 2231-2| UL 2251| UL 62| UL 991|UL 1998| NFPA 70 Article 625| UL840| CSA Std. C22.2#280| OCPP 2.0.1 Compliant| CTEP| ISO 15118 Compliant| cETLus
Material Specifications
- Enclosure Material
- Plastic (PC+PBT)

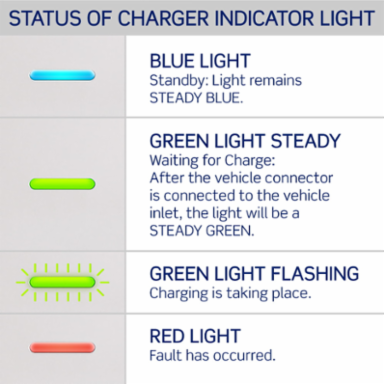

- Status Indicator
- Power Present, Charging, Fault
Enclosure RatingNEMA Type 3R
Mechanical Specifications
- Application
- Commercial, MDU, Public Use, Work
- Cable Length
- 25 ft. x2
- Charge Connector Cord
- SAE J1772™
- Feature
- Touch Sceeen Display
AuthenticationRFID, App
Card ReaderRFID
Device TypeCharger
Supported Connector TypesSAE J1772™
Product Features
- Cover Locking Mechanism
- Phillips Head Screws, No Padlock Option
Warranty
- Warranty
- 3-Year Limited
Environmental Specifications
- Altitude
- Up to 6,500 ft. (2,000 m)
- Cooling
- Natural Cooling
- Operating Temperature
- -40°F to +122°F (-40°C to +55°C)
- Storage Temperature
- -40°F to +122°F (-40°C to +50°C)
Charging Cable Operating Temperature-40°F to +122°F (-40°C to +55°C)
Operating HumidityUp to 95% @ 122°F (50°C) non-condensing
Operational AltitudeUp to 6,500 ft. (2,000 m)
Electrical Specifications
- Amperage
- 48 A x2
- Charge Connector Cord
- SAE J1772
- Dynamic Power Management
- Available with an active AmpUp subscription
- Input Rating
- 208/240 VAC, 48A x 2, 60HZ
- Max Output Power
- 11.6kW x 2
- Output
- 11.6 kW (240 VAC @ 120A/60Ax2) x 2
- Output Voltage
- 208/240VAC
- Power Factor
- 0.99 at full load
- Short Circuit Current Rating
- 20 mA CCID per UL 2231
- Wiring
- 3-wire (L1, L2, Earth)
Breaker60 A x2, 120 A
Circuit(2) 60 A Dedicated Circuit / (1) 120 A Dedicated Circuit
HarmonicsiTHD <5% (Complies with IEEE 519 Requirements)
Max Output Current48A x 2
Number of Phase / WireL1, L2 and Ground, Bottom Feed
Output Power11.6kW x2
Power Conversion Efficiency> 95%
Remote Energy ManagementYes, with an active AmpUp subscription
Voltage208/240 VAC
Connectivity Specifications
- Service and Maintenance
- Remote system monitoring, diagnostic, and proactive maintenance
- Wide Area Network
- 4G LTE
Supported Communication ProtocolsOCPP 2.0.1
