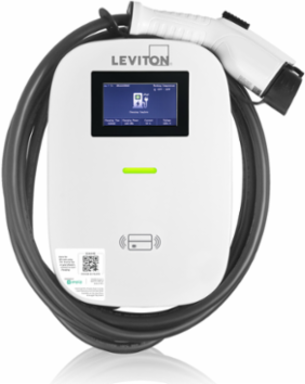

Leviton EV80S 80 Amp Level 2 Electric Vehicle Charging Station, Charging Station Management Software and LCD Screen
Leviton EV80S 80 Amp Level 2 Electric Vehicle Charging Station, Charging Station Management Software and LCD Screen
- MPN: EV80S
- UPC: 078477000557
- PPN: LEV-EV80S
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
EV Series Pro Level 2 Electric Vehicle Charging Station, 80A, 208/240 VAC, 19.2kW Output, J1772 Charge Connector, 18' Cord, Includes Mounting Bracket and Pre-Attached Input Cable, HARDWIRED ONLY, Features AmpUp Charging Station Management Software and LCD Screen
Features

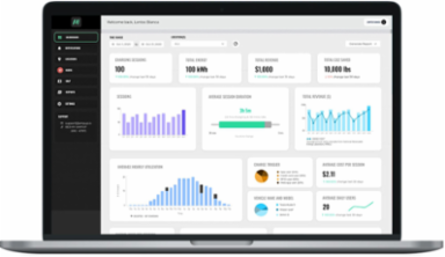

- MULTI-STATION, MULTI-SITE MANAGEMENT FOR SITE HOSTS – Featuring AmpUp Charging Station Management Software, these stations include real time analytics, the ability to set pricing groups and collect revenue, smart scheduling, advanced access control/RFID, power load management, automated reporting, and more
- IMPROVED EXPERIENCE FOR EV DRIVERS - The AmpUp software makes EV charging effortless for drivers by providing the ability to locate charging stations, reserve spots, initiate sessions, and more
- THE BRAND YOU TRUST – Leviton has been in homes for over a century and electrifying vehicles for over a decade. Charge at ease with UL/Energy Star Certified stations supported by a 24/7 dedicated team
- FOR ANY APPLICATION – featuring a water-resistant enclosure rated NEMA Type 3R and a cable designed to prevent freezing and cracking in extreme weather, you can install both indoors and outdoors

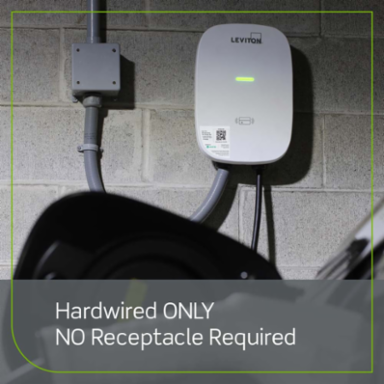

- EASY TO INSTALL – benefit from major times savings with a pre-attached input cable and included mounting hardware. Note this station is hardwired and requires a 100 Amp breaker
- CHARGE ANY ELECTRIC VEHICLE – with an industry standard SAE J1772™ cable, the EV Series can charge any EV, including Audi, BMW, Ford, Honda, Subaru, and even Tesla with a Tesla-supplied adapter

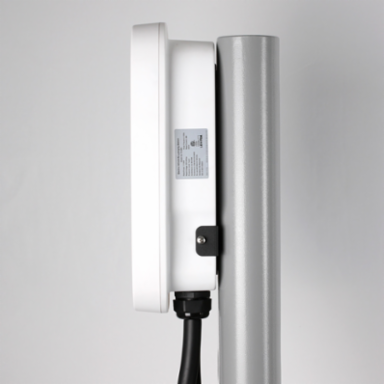

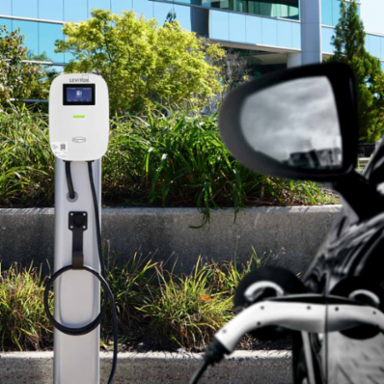

- UNIVERSAL COMPATIBILITY – Every pedestal works effortlessly with all EV Series Hardwired Units, making it easy to customize your charging setup for any location Have Questions? Search the knowledge base. Take advantage of government rebates and incentives.
Specifications
Standards and Certifications
- Standards and Certifications
- UL2594| UL 2231-1| UL 2231-2| UL 2251| UL 62| UL 991|UL 1998| NFPA 70 Article 625| UL840| CSA Std. C22.2#280| OCPP 1.6 Compliant| cETLus
Material Specifications
- Enclosure Material
- Plastic (PC+PBT)
- Status Indicator
- Power Present, Charging, Fault
Enclosure RatingNEMA Type 3R
Mechanical Specifications
- Cable Length
- 18 ft. (5.5 m)
Specifications
- Country of Origin
- China
RoHS CompliantFalse
Product Features
- Application
- Commercial|Public Use
- Device Type
- Charger
Cover Locking MechanismPhillips Head Screws, No Padlock Option

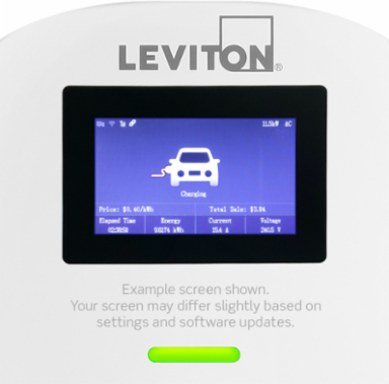

FeatureStation Management Software|LCD Screen
Warranty
- Warranty
- 3-Year Limited
Environmental Specifications
- Altitude
- Up to 6,500 ft. (2,000 m)
- Cooling
- Natural Cooling
Charging Cable Operating Temperature-30°C to +50°C
Operating Humidity< 95% Relative Humidity, Non-Condensing
Electrical Specifications
- Amperage
- 80 A
- Charge Connector Cord
- #6 AWG SAE J1772
- Operating Temperature
- -30°C to 50°C
- Short Circuit Current Rating
- 20 mA CCID per UL 2231
Breaker100 A
Number of Phase / WireL1, L2 and Ground, Bottom Feed
Output Power19.2kW
Voltage208/240 VAC
