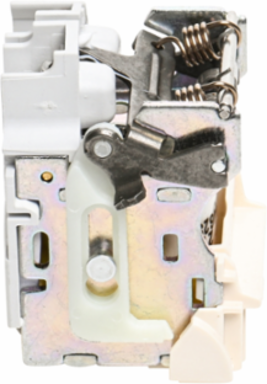

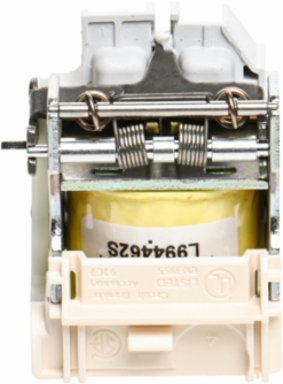

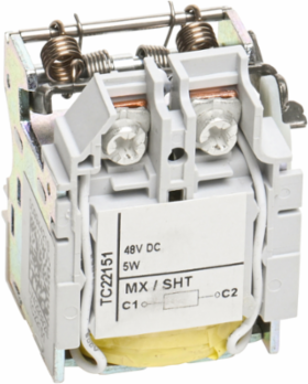

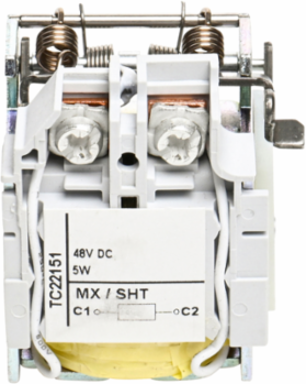

Square D S29392 Circuit breaker accessory, PowerPacT H/J/L, shunt trip, 48VDC
Square D S29392 Circuit breaker accessory, PowerPacT H/J/L, shunt trip, 48VDC
- MPN: S29392
- UPC: 785901855033
- PPN: SCH-S29392
- UNSPSC: 39121601
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1257.78/ EA
Description
This is a trip unit accessory for PowerPact H, J, L-Frame circuit breakers. This shunt trip has a rated voltage of 48 VDC. This accessory complies with CSA standards. This trip unit requires a tightening torque of 1.4-1.4 Nm, with a cable cross section of 0.82-2.5 mm², and an AWG gauge of AWG 18 / AWG 14.
Features
- Have common mounting holes, handle locations, and trim dimensions to allow design standardization
- A wide range of field-installable accessories allows customers to reduce inventory without sacrificing flexibility
- Available in 2-3 pole design, from 70-250A at up to 600 VAC and 250 VDC and in standard (80%) or 100% rating
- Easy to install, extremely versatile, a wide variety of terminal options
- Available in Unit mount (lug-lug, rear, bus bar, plugin and drawout) and I-line constructions.
Specifications
Conformance Attributes
- Product Certifications
- CSA
Complementary Attributes
- Rated Voltage
- 48-48 V DC
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Range Of Product
- PowerPact H, PowerPact J, PowerPact L
- Local Publishable Date
- 2025-11-13
- Traceability
- No
- Legacy WEEE Scope
- In
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant
- China ROHS In Scope
- No
- Without Single Use Plastic
- No
- Return Indicator
- Y
- Function Option
- Standard
- Package Weight Lbs
- 154 g
- Product Or Component Type
- shunt trip
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Stocking Flag
- N
- Global Commercial Status
- Commercialised
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
ServiceabilityNo
Field Service DivisionPPIBS
Scope PerimeterAt least in Europe
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdCOMPLIANT
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Energy Efficiency OptimizedFalse
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Tightening Torque1.4-1.4 N.m 0.82-2.5 mm² (AWG 18...AWG 14)
Medium DescCircuit breaker accessory, PowerPacT H/J/L, shunt trip, 48VDC
Product Kit IdentifierN
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant , Compliant
- Mercury Free
- Yes
- Packaging Without Single Use Plastic
- No
China ROHS RegulationProduct out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Recycled Metal Content At Cr Level0 %
Packaging Made With Recycled CardboardYes
General Attributes
- Range Of Product
- PowerPact H, PowerPact J, PowerPact L
Product Or Component Typeshunt trip
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
