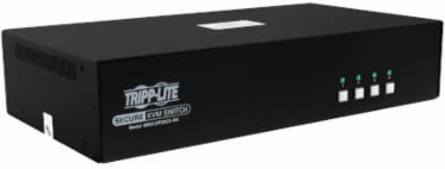

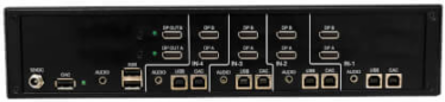

Tripp Lite B002DP2AC4N4 Secure KVM Switch, 4-Port, Dual Head, DisplayPort, 4K, NIAP PP4.0, Audio, CAC, TAA

MPN: B002DP2AC4N4
UPC: 037332274243
PPN: TRP-B002-DP2AC4-N4

$4250.07

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Secure KVM Switch, 4-Port, Dual Head, DisplayPort to DisplayPort, 4K, NIAP PP4.0, Audio, CAC, TAA

Features

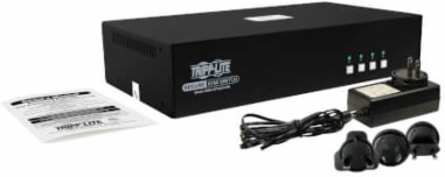

External power supply with NEMA 1-15P plug (Input: 100-240V, 50/60 Hz, 1.3A; Output: 12V 3A); includes 4 interchangeable power supply heads (US, UK, EU, Australia)

Documentation & Downloads

Specifications

Dimensions

Number of Ports	4
AC Power Adapter Cord Length	5 ft
Side A - Connector 2	(2) DisplayPort (Female)
Side B - Connector 1	(4) 3.5mm (Female)
Side B - Connector 3	(8) USB-A (Female)
Port Selection	Pushbutton

Number of Users	1
Side A - Connector 1	3.5mm (Female)
Side A - Connector 3	(3) USB-B (Female)
Side B - Connector 2	(8) DisplayPort (Female)
PC/Server Connections	DisplayPort; USB
LED Indicators	(x4) Green / Port Selection / CAC / EDID (Push-Button), (x2) Green / Video Console, (x1) Green / CAC Console

Material

Color	Black

Material of Construction	Metal

Compliance

Product Warranty Period	3-year limited warranty

Reference

Technology	DisplayPort

AC Power Adapter Plug	AS/NZS 3112 Australia; BS 1363 UK; CEE 7/7 Schuko; NEMA 1-15P North America

Performance

Max Supported Video Resolution	3840 x 2160 @ 30Hz
Chroma Sub Sampling	4:4:4
DisplayPort Specification	1.2
AC Power Adapter Output	12V / 3A
Operating Temperature Range	32° to 104°F (0° to 40°C)
Relative Humidity	0-80% non-condensing

Max Supported Color Depth	36-bit Deep Color
USB Specification	USB 1.1 (up to 12 Mbps); USB 2.0 (up to 480 Mbps)
AC Power Adapter Input	100-240V / 50/60Hz / 1.3A
Power Source Type	AC Adapter
Storage Temperature Range	4° to 140°F (-20° to 60°C)
