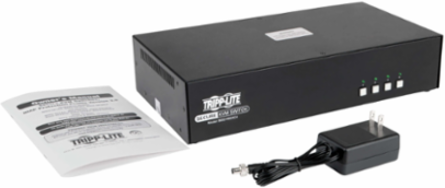

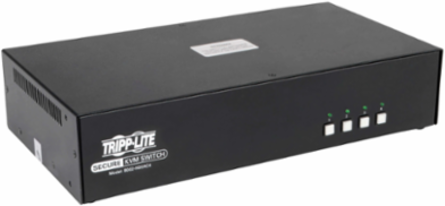

Tripp Lite B002-HD2AC4 Secure 4-Port KVM Switch, HDMI to DisplayPort, 4K, NIAP PP3.0 Certified
- MPN: B002-HD2AC4
- UPC: 037332221988
- PPN: TRP-B002-HD2AC4
CAD
$1730.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Secure 4-Port KVM Switch, HDMI to DisplayPort, 4K, NIAP PP3.0 Certified
Features
- Safely and securely switches between 4 isolated computers with different security levels
- Certified to NIAP/Common Criteria Protection Profile for Peripheral Sharing Switches V3.0
- Common Access Card (CAC) port supports biometric and other smart card readers
- Supports UHD resolutions up to 3840 x 2160 (@ 30 Hz) for crystal-clear 4K x 2K video
- Dual-monitor support enables multitasking and generates increased productivity
- 3-year limited warranty
- 4-Port KVM Switch, HDMI to DisplayPort, for Applications That Demand Secure Networks
- NIAP PP3.0 Certified to Meet Today’s Top Information Assurance Standards
- Top-of-the-Line Security Features Keep Your Data Safe
- CAC Port Supports Biometric and Other Smart-Card Readers
- Anti-Tampering Protection Prevents Physical Breeches
- Maintains Constant Keyboard and Mouse Emulation for Smooth No-Delay Switching
- Accessory Cable Kits - P783-006-DPU & P783-010-DPU (Not Included)
- TAA-Compliant for GSA Schedule Purchases
Documentation & Downloads
Specifications
Additional
| Ports | 4 |
|---|---|
| HDMI Specification | 1.4 |
| Power Input | 100-240V, 50/60 Hz, 0.8A |
| Operating Temperature Range | 0 to 40 C (32 to 104 F) |
| Relative Humidity | 0% to 80%, Non-Condensing |

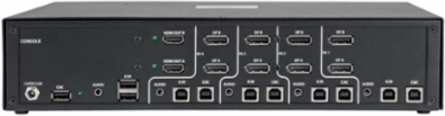

| Side B - Connectors | (2) USB B (FEMALE), (2) DISPLAYPORT (FEMALE), 3.5MM (FEMALE) |
| Computer Monitor Interface | DisplayPort |
| Console Monitor Interface | HDMI |
| External Power Supply Cord Length | 5 ft (1.5 m) |
| Number of Users | 1 |
| Technology | DisplayPort; HDMI; USB |
| NIAP-Certified Secure | Yes |
| Color | Black |
| Unit Dimensions (H x W x D) | 2.7 x 12.57 x 6.7 in (6.86 x 31.93 x 17.02 cm) |
| Max Supported Video Resolution | 3840 x 2160 @ 30Hz |
|---|---|
| Voltage Compatibility (VAC) | 100; 110; 125; 127; 200; 208; 220; 230; 240 |
| Power Output | 12V / 2A |
| Storage Temperature Range | -20 to 60 C (4 to 140 F) |
| Side A - Connectors | (2) HDMI (FEMALE), 3.5MM (FEMALE), (3) USB A (FEMALE) |
| Computer Keyboard and Mouse Interface | USB |
| Console Keyboard and Mouse Interface | USB |
| External Power Supply DC Barrel Connector | 5.5 x 2.1 x 7.5 mm, Positive Pin, Negative Sleeve |
| Rackmountable | No |
| Port Selection | Pushbutton |
| Certifications | NIAP PP3.0, FCC, UL, cUL, TAA |
| Common Access Card (CAC) Support | Yes |
| Unit Weight | 3 lbs (1.36 kg) |
| Warranty | 3-year limited |
