Tripp Lite B004-DPUA2-K 2-Port DisplayPort KVM Switch with Audio, Cables and USB 3.0 SuperSpeed Hub
Tripp Lite B004-DPUA2-K 2-Port DisplayPort KVM Switch with Audio, Cables and USB 3.0 SuperSpeed Hub
- MPN: B004-DPUA2-K
- UPC: 037332188625
- PPN: TRP-B004-DPUA2-K
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$540.15/ EA
Description
Control 2 DisplayPort computers using one DisplayPort monitor, USB keyboard and USB mouse. Connect USB 3.0 peripherals, such as hard drives and webcams, and share them between computers.
Features
- Connect peripherals to built-in 2-port USB 3.0 hub
- Switch between computers via front buttons or keyboard hotkeys
- Supports digital video resolutions up to 2560 x 1600
- Supports USB 3.0 data transfer rates up to 5 Gbps
- Supports Displayport 1.1

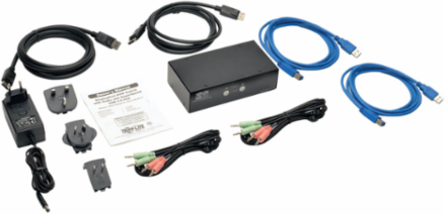

- Includes all necessary DisplayPort, USB 3.0 and audio cables
- 3-year limited warranty
Specifications
Features & Specifications
- Number of Users
- 1
- Port Selection
- Pushbutton; Hotkey
- Displayport Specification
- 1.1
- Number of USB Hub Ports
- 2
- Driver Required
- No
- Technology
- USB 3.0 (SuperSpeed); USB; DisplayPort; Stereo Audio
NIAP-Certified SecureNo
Max Supported Video Resolution2560 x 1600 @60Hz
USB Hub PortsYes
USB SpecificationUSB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps)
Cat5 KVM SwitchNo
Certifications
- Certifications
- Tested to FCC, CE, RoHS, REACH
Connections
- Ports
- 2
- Side A - Connector 1
- (2) DISPLAYPORT (FEMALE)
- Side A - Connector 3
- (4) 3.5MM (FEMALE)
- Side B - Connector 2
- (2) USB 3.0 A (FEMALE)
- Side B - Connector 4
- (2) 3.5MM (FEMALE)
- Computer Monitor Interface
- Displayport
- Console Monitor Interface
- Displayport
PC/Server ConnectionsUSB; DisplayPort
Side A - Connector 2(2) USB 3.0 B (FEMALE)
Side B - Connector 1DISPLAYPORT (FEMALE)
Side B - Connector 3(2) USB A (FEMALE)
Computer Keyboard and Mouse InterfaceUSB
Console Keyboard and Mouse InterfaceUSB
Connector PlatingNickel
Physical
- Color
- Black
- Shipping Dimensions (hwd / in.)
- 6.90 x 8.10 x 5.50
- Unit Dimensions (hwd / in.)
- 1.8 x 6.5 x 3.5
- Unit Weight (lbs.)
- 1.3
Material of ConstructionSECC
Shipping Weight (lbs.)3.00
Unit Packaging TypeBox
User Interface, Alerts & Controls
- LED Indicators
- Red (USB); White (Selected PC)
Input
- Voltage Compatibility (VAC)
- 100; 110; 120; 127; 200; 208; 220; 230; 240
- External Power Supply Output Specs (V / A)
- 9V / 2A
- External Power Supply DC Barrel Connector Specs
- OD: 5.5 x 2.1 x 10mm, Positive Pin, Negative Sleeve
- External Power Supply Certifications
- CE; FCC; UL; cUL; TUV; GS; BS; RCM; CB
External Power Supply Input Specs (V / Hz / A)100-240V / 50/60Hz / 0.8A
External Power Supply Cord Length (ft.)6
External Power Supply Plug(s)NEMA 1-15P North America; CEE 7/16 Schuko; BS 1363 UK; AS/NZS 3112 Australia
Communications
- IP Remote Access
- No
Environmental
- Operating Temperature Range
- 32 to 104 F (0 to 40 C)
- Relative Humidity
- 0%-90% RH, Non-Condensing
- Power Consumption (Watts)
- 5.8
Storage Temperature Range-4 to 140 F (-20 to 60 C)
BTUs19.8 BTU/Hr
Overview
- UPC Code
- 037332188625
Warranty
- Product Warranty Period (Worldwide)
- 3-year limited warranty
Downloads
