Documentation & Downloads

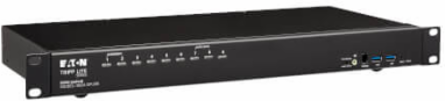

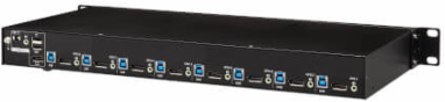

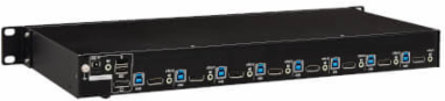

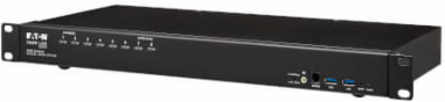

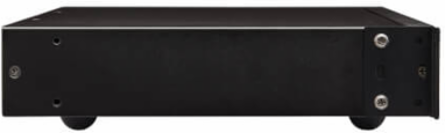

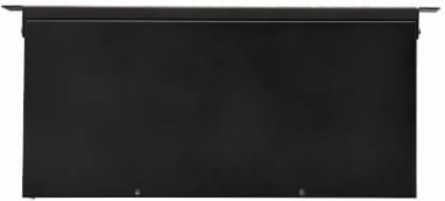

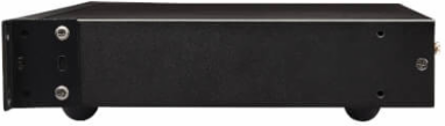

Tripp Lite B024DPU08 KVM Switch, 8-Port, DisplayPort, USB, Stereo Audio, 4K 60Hz, 1U Rack-Mount, TAA
- MPN: B024DPU08
- UPC: 037332263728
- PPN: TRP-B024-DPU08
CAD
$2612.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
8-Port DisplayPort/USB KVM Switch with Audio/Video and USB Peripheral Sharing, 4K 60 Hz, 1U Rack-Mount, TAA
Features
- 8-port DisplayPort/USB KVM switch with audio and USB peripheral sharing
- Supports 4K @60Hz (4096 x 2160) video resolution
- USB peripheral sharing for connected devices

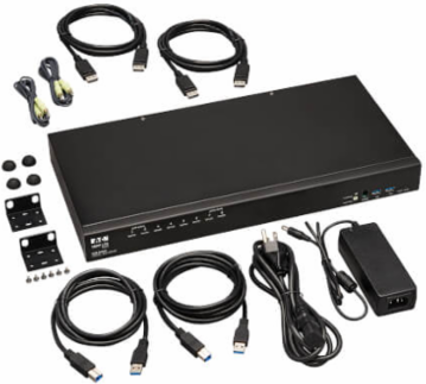

- Includes (2) DisplayPort 1.4 cables, 5 ft
- Includes (2) USB 3.0 A-to-B cables, 6 ft
- Includes (2) 3.5 mm audio cables, 6 ft
- Firmware upgrade cable included, 6 ft
- Rack-mounting hardware and rubber feet included
Documentation & Downloads
Specifications
Performance
- Max CPU Ports
- 8
- Max Supported Video Resolution
- 4K @60Hz (4096 x 2160)
- HDCP Specification
- 2.2
- Power Consumption
- 18.44W
- AC Power Adapter Output
- 12V / 3.33A
- Operating Temperature
- 32° to 104°F (0° to 40°C)
- Relative Humidity
- 0-80% non-condensing
- PC/Server Connections
- DisplayPort
- Port Selection
- Hotkey; OSD; Pushbutton; Remote Selector
Max Cascaded Ports128
DisplayPort Specification1.2
AudioStereo
AC Power Adapter Input100-240V / 50/60Hz / 1.2A
Power SourceAC Adapter with detachable power cord
Storage Temperature-4° to 140°F (-20° to 60°C)
TechnologyDisplayPort; Stereo Audio; USB 2.0
Port ControlPush Buttons, Hotkeys, OSD
CascadableYes
Material
- Color
- Black
- Connector Plating
- Nickel
MaterialMetal
Reference
- Warranty
- 1-year limited warranty
Dimensions
- Unit Weight (lb)
- 6.85
Computer/Server PortsDisplayPort, USB, 3.5mm Audio
