Tripp Lite PDUMNH30HV 5/5.8kW Single-Phase Monitored PDU with LX Platform Interface, 208/240V Outlets (12-C13 and 4-C19), L6-30P, 12ft Cord, 2U Rack-Mount, TAA
Tripp Lite PDUMNH30HV 5/5.8kW Single-Phase Monitored PDU with LX Platform Interface, 208/240V Outlets (12-C13 and 4-C19), L6-30P, 12ft Cord, 2U Rack-Mount, TAA
- MPN: PDUMNH30HV
- UPC: 037332159205
- PPN: TRP-PDUMNH30HV
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1646.95/ EA
Description
5/5.8kW Single-Phase Monitored PDU with LX Platform Interface, 208/240V Outlets (12-C13 and 4-C19), L6-30P, 12ft Cord, 2U Rack-Mount, TAA
Features
- Monitored 30A 208/240V PDU, 2U horizontal rackmount
- Reports voltage, frequency & load level via built-in LX Platform Interface
- Visual current meter, Reversible housing

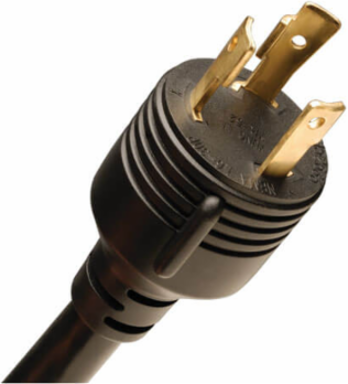

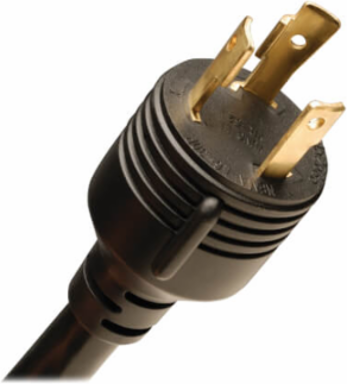

- L6-30P input with 12ft / 3.6m line cord

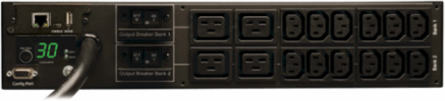

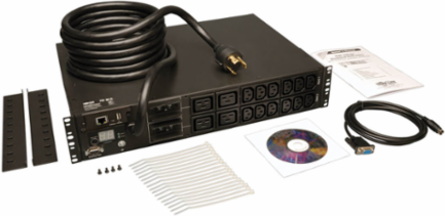

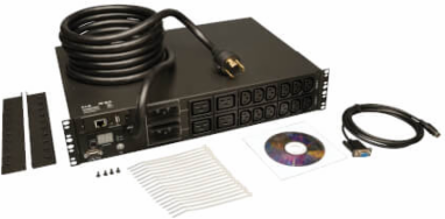

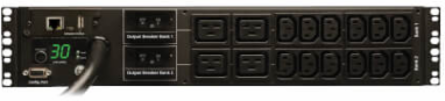

- 16 outlets (12 C13, 4 C19) with included cord retention brackets
- Temperature, humidity and contact-closure monitoring options
- TAA Compliant
- 2-year limited warranty
Specifications
Certifications
- Certifications
- Tested to UL (USA), CSA (Canada), NOM (Mexico), Class A (emissions), RoHS compliant, TAA Compliant
Physical
- Form Factors Supported
- 2U rackmount
- Minimum Required Rack Depth (inches)
- 16
- Shipping Dimensions (hwd / in.)
- 7.80 x 16.80 x 19.90
- Unit Dimensions (hwd / in.)
- 3.5 x 17.5 x 12.5
Material of ConstructionMetal
PDU Form FactorHorizontal (2U)
Shipping Weight (lbs.)16.40
Unit Weight (lbs.)13.7
User Interface, Alerts & Controls
- Front Panel LCD Display
- Digital current meter reports PDU output current in amps for 3 loading segments (Bank 1, Bank 2 and Banks 1&2 combined)
- Switches
- Pressing the display toggle switch advances the local display of power consumption for the 3 reported segments: Bank 1, Bank 2 and Banks 1+2 combined
Front Panel LEDsFront panel LEDs indicates which loading segment the digital LCD current display is reporting; Bank 1 LED indicates the meter is reporting load level for outlets 1-8; Bank 2 LED indicates the meter is reporting load level for outlets 9-16; Both LEDs lighted indicates the meter is reporting load level for all outlets combined
Input
- PDU Input Voltage
- 200; 208; 240
- Maximum Input Amps
- 30
- PDU Plug Type
- NEMA L6-30P
- Input Cord Length (ft.)
- 12
Recommended Electrical Service30A 208/240V
Maximum Input Amps DetailsAgency de-rated to 24A continuous
Input PhaseSingle-Phase
Output
- Frequency Compatibility
- 50 / 60 Hz
- Output Receptacles
- (12) C13; (4) C19
- Overload Protection
- Two 20A breakers protect 8 outlets each
Output Capacity Details5.8kW (240V), 5kW (208V), 4.8kW (200V) total capacity / 30A max (Agency de-rated to 24A), 20A max per breakered outlet bank; 16A max per C19 outlet; 12A max per C13 outlet
Output Nominal Voltage200; 208; 240
Communications
- SNMP Compatibility
- Pre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, telnet, SSH and SNMP management systems
Environmental
- Storage Temperature Range
- -30°C to +50°C (-22°F to +122°F)
Relative Humidity5-95% non-condensing
Overview
- UPC Code
- 037332159205
PDU TypeMonitored
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
Downloads
