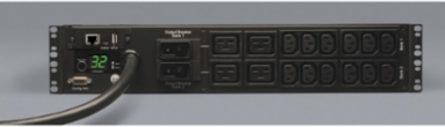

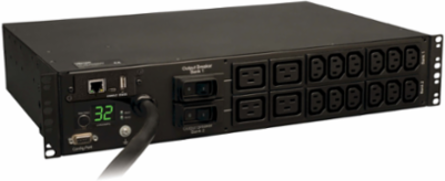

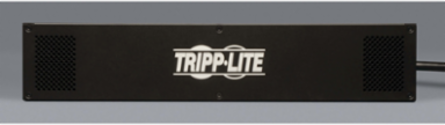

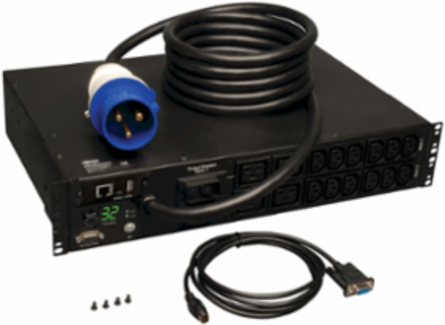

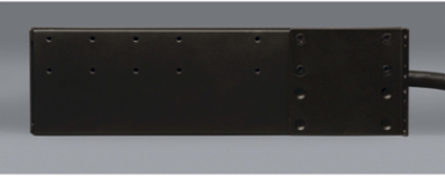

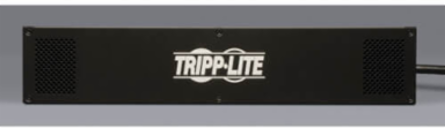

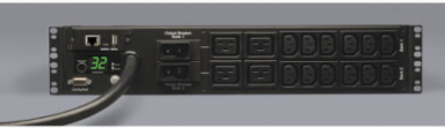

Tripp Lite PDUMNH32HV 7.4kW Single-Phase Monitored PDU with LX Platform Interface, 230V Outlets (12-C13, 4-C19), IEC-309 32A Blue, 12ft Cord, 2U Rack-Mount, TAA
Tripp Lite PDUMNH32HV 7.4kW Single-Phase Monitored PDU with LX Platform Interface, 230V Outlets (12-C13, 4-C19), IEC-309 32A Blue, 12ft Cord, 2U Rack-Mount, TAA
- MPN: PDUMNH32HV
- UPC: 037332159229
- PPN: TRP-PDUMNH32HV
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1485.48/ EA
Description
7.4kW Single-Phase Monitored PDU with LX Platform Interface, 230V Outlets (12-C13, 4-C19), IEC-309 32A Blue, 12ft Cord, 2U Rack-Mount, TAA
Features
- Monitored 32A 230V PDU, 2U horizontal rackmount
- Built-in LX Platform Network Interface reports voltage, frequency & load level
- Visual current meter, Reversible housing

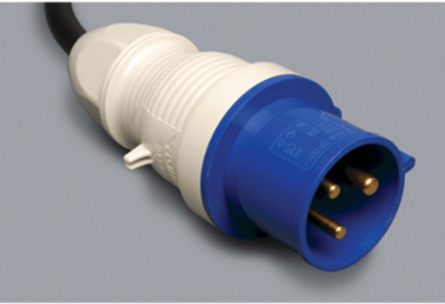

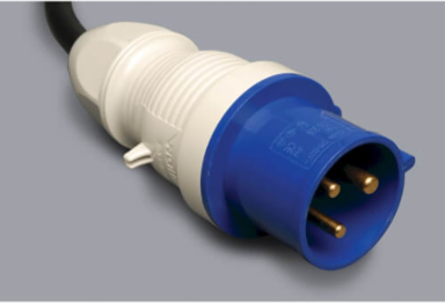

- Blue 230V IEC-309 32A (2P+E) input plug
- 16 outlets (12 C13, 4 C19) with included cord retention brackets
- Temperature, humidity and contact-closure monitoring options
- TAA Compliant
- 2-year limited warranty
Specifications
Certifications
- Certifications
- Tested to CE (IEC 60950-1), EN Class A (Emissions), RoHS compliant, TAA Compliant
Physical
- Form Factors Supported
- 2U rackmount
- Minimum Required Rack Depth (inches)
- 16
- Shipping Dimensions (hwd / in.)
- 7.90 x 16.90 x 20.20
- Unit Dimensions (hwd / in.)
- 3.5 x 17.5 x 12.5
Material of ConstructionMetal
PDU Form FactorHorizontal (2U)
Shipping Weight (lbs.)15.60
Unit Weight (lbs.)13.7
User Interface, Alerts & Controls
- Front Panel LCD Display
- Front panel LEDs indicate which loading segment the digital LCD current display is reporting; Bank 1 LED indicates the meter is reporting load level for outlets 1-8; Bank 2 LED indicates the meter is reporting load level for outlets 9-16; Both LEDs lighted indicates the meter is reporting load level for all outlets combined
- Switches
- Pressing the display toggle switch advances the local display of power consumption for the 3 reported segments: Bank 1, Bank 2 and Banks 1+2 combined
Front Panel LEDsTwo LEDs with toggle button identify which bank the visual current meter is reporting (Bank 1, Bank 2 or Banks 1 & 2 combined)
Input
- PDU Input Voltage
- 230
- Maximum Input Amps
- 32
- Input Phase
- Single-Phase
Recommended Electrical Service32A 230V
PDU Plug TypeIEC-309 32A BLUE (2P+E)
Input Cord Length (ft.)12
Output
- Frequency Compatibility
- 50 / 60 Hz
- Output Receptacles
- (12) C13; (4) C19
- Overload Protection
- Two 20A circuit breakers protect 8 outlets each
Output Capacity Details7.4kW (230V) / 32A total capacity / 16A max per breakered outlet bank; 16A max per C19 outlet; 10A max per C13 outlet
Output Nominal Voltage230
Communications
- SNMP Compatibility
- Pre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, telnet, SSH and SNMP management systems
Environmental
- Storage Temperature Range
- -30°C to +50°C (-22°F to +122°F)
Relative HumidityUp to 95% non-condensing
Overview
- UPC Code
- 037332159229
PDU TypeMonitored
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
