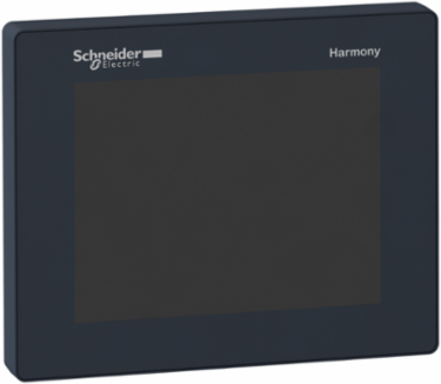

Schneider Electric HMISCU8B5 Harmony SCU 5.7 Inch HMI Controller with 8 Digital I/O, 4 Analog In/2 Out

MPN: HMISCU8B5
PPN: SCH-HMISCU8B5

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$1774.06

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Magelis SCU small touchscreen operator interface controller (HMI) is supplied with 24V DC, has a 5.7" color TFT LCD display and 128MB EPROM. It also has 8 digital inputs, 8 digital outputs, 4 analog inputs, 2 analog outputs, 1 host + 1 mini-B USB ports, 1 RS232C / RS485 port and 1 CANopen port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. Its RS485 and CANopen host ports make it ideal to supervise and control simple systems and machines. Its multiple I/O, including high speed counters, allowing you to processes with fast sensing chains.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, China, France, United Kingdom, Indonesia, United States

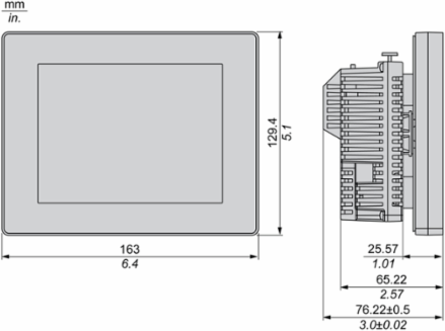

Depth	76.22 mm

Physical Attributes

Display Size	5.7 inch

Complementary Attributes

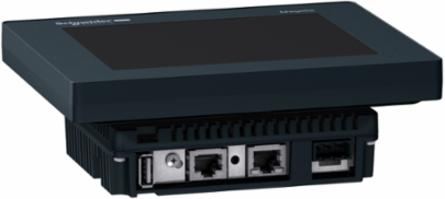

Integrated Connection Type	1 serial link - RJ45 - RS232/RS485 <= 115.2 kbits/s), 1 Ethernet TCP/IP - RJ45, 1 USB 2.0 type mini B, 1 USB 2.0 type ACANopen master bus - SUB-D 9
Maximum Cable Distance Between Devices	shielded cable <10 m fast inputshielded cable <100 m digital inputunshielded cable <50 m digital input
Maximum Pressure	800...1114 hPa

Maximum Input Frequency	100 kHz fast input (encoder mode) A/B100 kHz fast input single phase, 100 kHz fast input pulse/direction
Maximum Output Frequency	100 kHz fast output (PTO mode)1 kHz fast output (PWM mode)

Important Information Attributes

Persona Type Ids	EU, OM, OM8, PB, SC
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Character Font	Chinese (simplified Chinese), Japanese (ANK, Kanji), ASCII, Korean, Taiwanese (traditional Chinese)
Downloadable Protocols	Modbus, Modbus TCP/IP, CANopen
Insulation Resistance	> 10 MOhm between the I/O and internal logic, > 10 MOhm between the I/O and internal logic, > 10 MOhm between power supply and earth, > 10 MOhm between power supply and earth> 10 MOhm between the I/O and internal logic, > 10 MOhm between the I/O and internal logic, > 10 MOhm between power supply and earth
Number Of Common Point	1 fast input (HSC mode), 1 digital input
Vibration Resistance	+/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-61 gn 9-150 Hz) IEC 60068-2-6
Certificate Agency	cULus 508, cULus CSA 22-2 No 142, GOST, cUL 1604 Class 1 Division 2, C-tick, KCC, UKCA, UKEX
Carbon Footprint Of The Distribution Phase [A4]	0.1326, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.4 kg CO2 eq., 0.35202
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	534 kg CO2 eq., 533.56
Local Publishable Date	2026-01-12
Stocking Flag	Y
Device Type	HMI - Graphical display unit
Traceability	Yes
Average Life Duration	7 year(s)
Distribution Carbon Footprint	0.1326
Weee Applicability	Finished product
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	4
Without Single Use Plastic	No
Dangerous Goods Code	LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
Tier	1
Function Option	Standard
Brightness	16 levels via touch panel
Display Resolution	320 x 240 pixels QVGA
Enclosure Material	PC/PBT and PAA
Fixing Mode	by 1 nut Ø 22 mm 1...6 mm thick panel
Immunity To Microbreaks	10 ms
Isolation Between Channels	none
Local Signalling	no indicator
Number Of Pages	limited by internal memory capacity
Power Consumption In W	24 W
Processor Name	CPU RISC
Product Or Component Type	small touch HMI controller
Realtime Clock	built-in
Sensor Power Supply	15-28.8 V DC >= 15 V >= 5 mA = 15 V >= 2.5 mA <= 5 V <= 1 mA
Software Version	v5.9.4
Sustainable Packaging	No
Touch Panel	analogue
Pep Code	ENVPEP1405010EN
Pep Verification Date	2023-11-28
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	referent product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Installation [A5]	Electricity Mix; Production mix; Low voltage; US
Energy Model - End Of Life [C1-c4]	Electricity Mix; Production mix; Low voltage; US
Height Nominal	129.4 mm

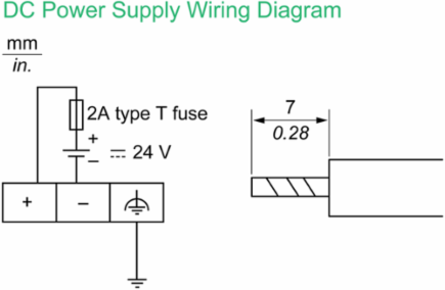

[Us] Rated Supply Voltage	24 V 20.4-28.8 V)DC
F-gas Usage Performance	Only air and vacuum used for insulation / breaking, no F-gas including SF6
Nbr. Of Units In Pkg.	1
Silicone-free	No
Warranty (In Months)	18
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]	107.61
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]	533.16
Climate Change - Total ( Kg Co2 Eq.) Distribution [A4]	0.1326
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle	15486.1548
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4]	1.8474
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]	14138
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]	-9.6125
Ecotoxicity (Fresh Water) (Ctue) Installation [A5]	3.0556
Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]	126.22
Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]	486.73
Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6]	5.1433
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]	869.05
Non-hazardous Waste Disposed Of (Kg) Installation [A5]	1.1307
Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]	-5.0626
Terrestrial Eutrophication (Mole Of N Equiv) Manufacturing [A1-a3]	1.1512
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle	14.73
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]	-1.1026
Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]	1362.4
Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5]	3.9075
Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]	12.587
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]	32.289
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]	-1.4189
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]	14.73
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle	15471.4548
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4]	1.8474
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]	14138
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]	-8.5099
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]	3.7121
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]	28.576
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]	2.0047
Water Use (M3 Eq) Operational Energy Use [B6]	21.603

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market Segmentation	Commercial, Industrial
Configurable Filtering Time	0 ms no filter none), 0.004...0.04 ms bounce filter latch/event and cumulative filter by step Nx0.5ms (64>=N>=2)), 3...12 ms integrator none/run/stop)
Electromagnetic Compatibility	electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz...3 GHz) conforming to IEC 61000-4-3electrical fast transient/burst immunity test - test level: 2 kV (power lines) conforming to IEC 61000-4-4electrical fast transient/burst immunity test - test level: 1 kV (between analogue I/O and operating voltage) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 2 kV (relay wires) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 1 kV (Ethernet line) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 1 kV (COM line) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 1 kV (CAN line) conforming to IEC 61000-4-4, surge immunity test - test level: 2 kV (power supply (common mode)) conforming to IEC 61000-4-5, surge immunity test - test level: 1 kV (power supply (differential mode)) conforming to IEC 61000-4-5surge immunity test - test level: 1 kV common mode (digital I/O) conforming to IEC 61000-4-5, surge immunity test - test level: 0.5 kV differential mode (digital I/O) conforming to IEC 61000-4-5conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to IEC 61000-4-6, conducted emission - test level: 150 kHz...30 MHz conforming to EN 55011radiated emission - test level: 30 MHz...1 GHz conforming to EN 55011
Memory Description	flash NAND, 128 MB, internal data storage FRAM, 128 kBapplication run DRAM, 128 MB
Shock Resistance	147 m/s² 11 ms on DIN rail)IEC 60068-2-27, 294 m/s² 6 ms on panel mounting)IEC 60068-2-27
View Angle Horiz X Vert	60° left, 60° right40° top, 60° bottom
Input/Output Number	2 fast input FI0...FI12 fast output FQ0...FQ1, 6 digital input DI0...DI56 digital output DQ0...DQ5
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.47921, 0.5 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	108 kg CO2 eq., 107.72
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Serviceability	Yes
Field Service Division	IDIBS
Manufacturing Carbon Footprint	107.72
Use Carbon Footprint	533.56
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1405010EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1920
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Connection Pitch	3.5 mm
Display Type	backlit LED colour TFT LCD
Environmental Characteristic	corrosive gas free
Overvoltage Protection	with
Inrush Current	30 A
Isolation Between Channels And Internal Logic	500 V DC
Marking	CE
Operating System	Harmony
Processor Frequency	333 MHz
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	Harmony SCU
Returnability	Yes
Software Designation	SoMachine
Supply	external source
Total Lifecycle Carbon Footprint	642 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	To provide 5.7" TFT Smart Display during 10 years and maximum use rate at 13W, based on below function:& 10 - 5.7 inch Touchscreen panel& 10 - Digital In/Out +Analog In/Out& 10 - Serial comunication interface (RS-232C/485))& 10 - USB2.0 Interface (Type-A, mini-B)& 10 - Ethernet interface& 10 - CANopen master bus& 10,in accordance with the relevant standards:& 10 - FCC Class A& 10 - EN 61131-2& 10 - UL 508& 10 - IEC 61000-6-2& 10 - CSA C22.2 No 213 Class I Division 2& 10 - ANSI/ISA 12-12-01
Functional-unit Unit	Unit
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Production mix; Low voltage; CN
Energy Model - Use [B6]	Electricity Mix; Production mix; Low voltage; US
Recyclability Potential In %	7
Width Nominal	163 mm
F-gas Free	Only air and vacuum used for insulation / breaking, no F-gas including SF6
Halogen-free Status	Product contains halogen above thresholds
Package Weight(Lbs)	1.495 kg
Take-back	No
Acidification (Ap) (Mole Of H+ Equiv) Operational Energy Use [B6]	3.32
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Distribution [A4]	0.1326
Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]	107.72
Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]	533.56
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]	1330.1
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5]	3.6214
Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]	12.586
Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]	1243.1
Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]	7661.7
Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]	-13.093
Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]	-3.1498
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]	23.606
Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]	20.716
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]	82.474
Photochemical Ozone Formation (Kg Of Nmvoc Equiv) Operational Energy Use [B6]	1.2462
Terrestrial Eutrophication (Mole Of N Equiv) Operational Energy Use [B6]	4.4274
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]	14.73
Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle	17003.7443
Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4]	1.8498
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]	15623
Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]	-11.031
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]	1484.9
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle	13.6274
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]	-1.1026
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]	1315.4
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]	3.6214
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]	12.586
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle	3.7121
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]	-3.4236
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]	1484.9
Water Use (M3 Eq) Manufacturing [A1-a3]	29.717
Customs Code	8537109160

Environment Attributes Main

Ambient Air Temperature For Storage	-20-60 °C, -20-60 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Carbon Footprint	642.2438299999999
Circularity Profile	ENVEOLI1405010EN
Eu Rohs Directive	Compliant By Exemption
Ip Degree Of Protection	IP20 IEC 60529 rear panel)IP65 IEC 60529 front panel)
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Storage Altitude	0-10000 m
Pep Verification Date	2023-11-28
Psr Version	PSR-0005-ed2-2016 03 29

Operating Altitude	<= 6561.68 ft (2000 m), <= 6561.68 ft (2000 m)
Halogene Performance	Product contains halogen above thresholds
China Rohs Regulation	X
Silicon Free	No
Ambient Air Temperature For Operation	0-50 °C
Environmental Disclosure	ENVPEP1405010EN
Halogen Content Performance	Product contains halogen above thresholds
Nema Degree Of Protection	NEMA 4X front panel
Packaging Without Single Use Plastic	No
Relative Humidity	5-85 % without condensation
Pep Code	ENVPEP1405010EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

General Attributes

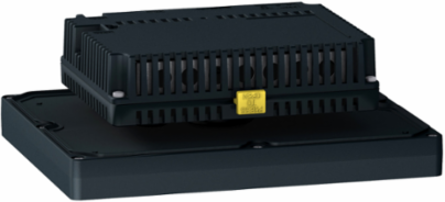

Product Or Component Type	small touch HMI controller

Range Of Product	Harmony SCU

ETIM

ETIM 8	EC001412

ETIM 9	EC001412

Output Attributes

Analogue Output Range	-10...10 V/0...10 V > 2 kOhm)short-circuit, -10...10 V/0...10 V > 2 kOhm)short-circuit, -10...10 V/0...10 V > 2 kOhm)short-circuit0...20 mA/4...20 mA > 300 Ohm)open-circuit, -10...10 V/0...10 V > 2 kOhm)short-circuit, -10...10 V/0...10 V > 2 kOhm)short-circuit, -10...10 V/0...10 V > 2 kOhm)short-circuit
Analogue Output Number	2 resistive load 12 bits + sign
Discrete Output Number	2 fast output (normal mode) source6 digital output source

Discrete Output Voltage	24 V DC 19.2...28.8 V)transistor24 V DC 5...30 V)relay, 220 V AC 100...250 V)relay
Discrete Output Current	2 A 4 A)5 ms opening contact digital output2 A 4 A)2 ms closing contact digital output300 mA2 ms fast output (normal mode)50 mA2 ms fast output (PWM or PTO mode)
Maximum Output Frequency	100 kHz fast output (PTO mode)1 kHz fast output (PWM mode)

Surge Protection And Filtering Attributes

Configurable Filtering Time	0 ms no filter none), 0.004...0.04 ms bounce filter latch/event and cumulative filter by step Nx0.5ms (64>=N>=2)), 3...12 ms integrator none/run/stop)

Input Attributes

Analogue Input Number	2 analog input, 2 RTDs
Analogue Input Type	RTD - 200...600 °C 16 bitsPt 100/Pt 1000RTD - 50...200 °C 16 bitsNi 100/Ni 1000RTD - 200...760 °C 16 bits thermocouple J)RTD - 240...1370 °C 16 bits thermocouple K)RTD 0...1600 °C 16 bits thermocouple R)RTD 200...1800 °C 16 bits thermocouple B), RTD 0...1600 °C 16 bits thermocouple S)RTD - 200...400 °C 16 bits thermocouple T)RTD - 200...900 °C 16 bits thermocouple E)RTD - 200...1300 °C 16 bits thermocouple N)
Maximum Input Frequency	100 kHz fast input (encoder mode) A/B100 kHz fast input single phase, 100 kHz fast input pulse/direction
Discrete Input Number	2 fast input (normal mode) IEC 61131-2 Type 16 digital input IEC 61131-2 Type 1

Analogue Input Range	-10...+10 V or 0...10 V 12 bits + sign >= 1 MOhm, -10...+10 V or 0...10 V 12 bits + sign >= 1 MOhm, -10...+10 V or 0...10 V 12 bits + sign >= 1 MOhm, 0...20 mA/4...20 mA 12 bits 250 Ohm +/- 1 %), -10...+10 V or 0...10 V 12 bits + sign >= 1 MOhm, -10...+10 V or 0...10 V 12 bits + sign >= 1 MOhm, -10...+10 V or 0...10 V 12 bits + sign >= 1 MOhm
Input Impedance	4.7 kOhm, 2.81 kOhm
Discrete Input Current	7.83 mA fast input5 mA digital
Discrete Input Voltage	24 V DC sink or source (positive/negative)
