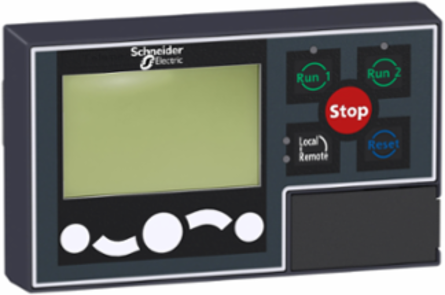

Schneider Electric LTMCU TeSys T Operator Control Unit, 70 mm Height, IP54, Backlit LCD, 0.4 kg
- MPN: LTMCU
- PPN: SCH-LTMCU
CAD
$668.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The LTMCU TeSys T Operator Control Unit from Schneider Electric is engineered for robust performance in industrial automation settings, featuring a compact design with a height of just 70 mm. This unit is equipped with a backlit LCD, ensuring readability in various lighting conditions, and it boasts an IP54 rating for effective dust and water resistance. Weighing only 0.4 kg, it is both lightweight and easy to integrate into existing systems, making it an efficient choice for enhancing monitoring and control capabilities in your PLC and HMI applications.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, United States
Depth50 mm
Complementary Attributes
- Maximum Supply Current
- 140 mA
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electromagnetic Compatibility
- electrostatic discharge, level 3, 8 kV air, 4 kV contact, conforming to EN/IEC 61000-4-2, radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3, conducted RF disturbances, level 3, 10 V, conforming to EN/IEC 61000-4-6surges (shielded access), level 3, 2 kV, conforming to EN/IEC 61000-4-5fast transient bursts (shielded access), level 3, 2 kV, conforming to EN/IEC 61000-4-4
- Certificate Agency
- C-tick, EAC, CSA, NOM, UL, CE
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.6 kg CO2 eq., 0.5536992088811071
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 5 kg CO2 eq., 4.861914400848377
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- Yes
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2503009_V1
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2426
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Compatibility Code
- LTMCU
- Device Connection
- connection to a LTM R controller, RJ45 rearconnection to a PC, RJ45 front
- Display Type
- Backlit LCD
- Fire Resistance
- 650 °C EN/IEC 60947-1
- Local Signalling
- 4 LEDs
- Power Dissipation
- 1 W
- Product Or Component Type
- operator control unit
- Range
- TeSys
- Software Version
- v6.2.5
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2025-01
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.An Operator Control Unit (HMI) to configure, monitor, and control the connected load.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; China, CN
- Energy Model - Use [B6]
- Electricity origin
- Height Nominal
- 70 mm
- Halogen-free Status
- Halogen free plastic parts product
- Package Weight(Lbs)
- 264.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Mechanical Robustnessshocks15 Gn for 11 ms EN/IEC 60068-2-27, vibrations4 Gn, 5...300 Hz EN/IEC 60068-2-6
Carbon Footprint Of The Distribution Phase [A4]0.10522433023845391, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.011827928950655396, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]9 kg CO2 eq., 9.261890479626357
Local Publishable Date2026-06-27
Stocking FlagN
Device TypeRelay, Control & Measurement - Protection relay
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Control Button Type10 push-button
Device Short NameLTMCU
Energy Efficiency OptimizedFalse
Flame RetardanceV2 conforming to UL 94
Mounting Modeflush-mounted
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTC 12 humidity cycles 55 °C EN/IEC 60068-2-30
ReturnabilityYes
Supplyvia the controller
Total Lifecycle Carbon Footprint15 kg CO2 eq.
Pep CodeENVPEP2503009EN
Pep Verification Date2025-03-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity origin
Energy Model - End Of Life [C1-c4]Electricity origin
Width Nominal117 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8538908180
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-80 °C, -40-80 °C
- Halogene Performance
- Halogen free plastic parts product
- China Rohs Regulation
- X
- Carbon Footprint
- 14.794556348544953
- Circularity Profile
- ENVEOLI2503009_V1
- Eu Rohs Directive
- Compliant By Exemption
- Ip Degree Of Protection
- IP54 EN/IEC 60947-4-1 front)IP20 EN/IEC 60947-4-1 rear)
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 15-95 %
- Pep Verification Date
- 2025-03-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation-20-60 °C-20-60 °C
Environmental DisclosureENVPEP2503009EN
Halogen Content PerformanceHalogen free plastic parts product
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2503009EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- operator control unit
ETIM
- ETIM 8
- EC002614
ETIM 9EC002614
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
