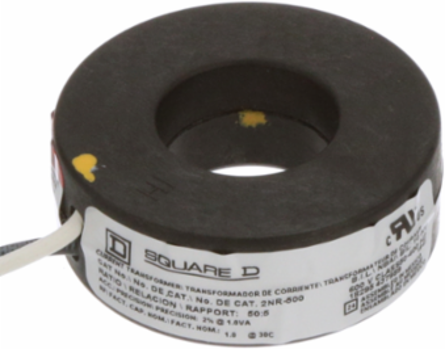

Square D 2NR500 TRANSFORMER CURRENT 50:5 1-1/8 ID
- MPN: 2NR500
- UPC: 785901098935
- PPN: SCH-2NR-500
CAD
$266.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Square D offers a line of instrument current and voltage transformers that are used for measurement and control of distribution equipment. There are 5 different current transformer configuration which are General Purpose Round, Toridal, Bushing, Rectangular, and Split Core configurations. There are also 3 different type of voltage transformers which have varying levels of accuracy for different applications. This product is current transformer with a current rating ratio of 50 to 5 with a window size of 1 and 1/8 inch with a rated power of 1 VA. This transformer is NEMA 1 degree of protection and is UL, CA and ANSI certified.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico, United States, ZZ |
|---|
Physical Attributes

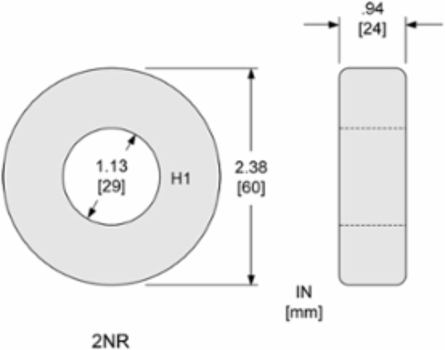

| Opening Size | Ø 1.13 in |
|---|
Complementary Attributes
| Rated Power In Va | 1 VA |
|---|
Important Information Attributes
| Local Data Status | Publishable |
|---|---|
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Electrical Connection | flying leads 24 in, AWG 16 |
| Phase | 1 phase |
| Product Or Component Type | General Purpose Current Transformer |
| Sustainable Packaging | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Halogen-free Status | Halogen free plastic parts product |
| Package Weight(Lbs) | 244.94 g |
| Customs Code | 8504312000 |
| Local Publishable Date | 2025-11-13 |
|---|---|
| Stocking Flag | Y |
| Device Type | Transformer - current transformer |
| Traceability | No |
| Weee Product Category | 4 |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1909 |
| China Rohs In Scope | No |
| Product Kit Identifier | N |
| Opening Diameter | 1.13 in |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Transformer Ratio | 50/5 |
| Certificate Agency | UL Recognized |
| Nbr. Of Units In Pkg. | 1 |
| Warranty (In Months) | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Halogene Performance | Halogen free plastic parts product |
| Mercury Free | Yes |
| Halogen Content Performance | Halogen free plastic parts product |
| Reach Free Of Svhc | Yes |
| Reach Free Shvc | Yes |
|---|---|
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Nema Degree Of Protection | NEMA 1 |
General Attributes
| Phase | 1 phase |
|---|
| Product Or Component Type | General Purpose Current Transformer |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
