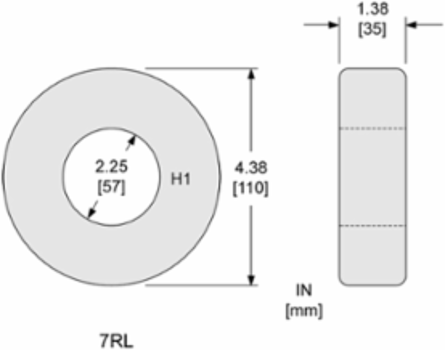

Square D 7RL500 TRANSFORMER CURRENT 50:5
- MPN: 7RL500
- UPC: 785901662020
- PPN: SCH-7RL-500
CAD
$90.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TRANSFORMER CURRENT 50:5
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States
Physical Attributes
- Opening Size
- Ø 2.25 in
Opening Width57 mm
Complementary Attributes
- Rated Power In Va
- 2.5 VA 60 Hz5 VA 400 Hz
Important Information Attributes
- Certificate Agency
- UL Recognized, CSA
- Local Publishable Date
- 2025-07-23
- Stocking Flag
- Y
- Device Type
- Transformer - current transformer
- Traceability
- No
- Weee Product Category
- 4
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1909
- China Rohs In Scope
- No
- Product Kit Identifier
- N
- Opening Diameter
- 2.25 in
- Product Availability
- Stock - Normally stocked in distribution facility
- Returnability
- Yes
- Transformer Ratio
- 50/5
- Halogen-free Status
- Halogen free plastic parts product
- Package Weight(Lbs)
- 1.361 kg
- Customs Code
- 8504312000
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Electrical Connectionflying leads 24 in, AWG 16
Phase1 phase
Product Or Component TypeGeneral Purpose Current Transformer
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Nbr. Of Units In Pkg.1
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Halogene Performance
- Halogen free plastic parts product
- Mercury Free
- Yes
- Halogen Content Performance
- Halogen free plastic parts product
- Reach Free Of Svhc
- Yes
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Eu Rohs DirectiveCompliant
Nema Degree Of ProtectionNEMA 1
General Attributes
- Phase
- 1 phase
Product Or Component TypeGeneral Purpose Current Transformer
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
