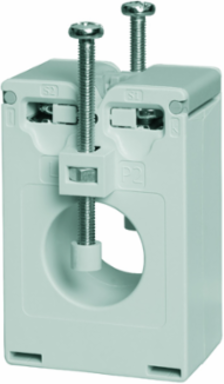

Carlo Gavazzi CTD1X1005AXXX Current transformer - Solid core Current transformer 100A/5A
- MPN: CTD1X1005AXXX
- PPN: CLG-CTD-1X.100.5A.XXX
CAD
$62.68
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Current transformer - Solid core Current transformer 100A/5A
Documentation & Downloads
Specifications
Key Specifications
| Model | Through-feed current converter |
|---|---|
| Secondary rated current | 5 |
| Accuracy class | 0.5 |
| Calibrated | No |
| Opening diameter | 23.3 |
| With copper rail | No |
| Number of primary inputs | 1 |
| Product Height | 65 |
| With approval according to UL | Yes |
| Wall mounting/direct mounting | Yes |
| Product Main Family Group | Solid core |
| Rated primary current | 100 A |
| Output | 5 A |
| Primary rated current | 100 |
|---|---|
| Secondary rated apparent power | 1.5 |
| Over current limiting factor | FS 5 |
| With shock protection | No |
| Snap mounting | Yes |
| Secondary connection | Screw connection |
| Product Width | 46 |
| Product Depth | 44 |
| Rail mounting possible | Yes |
| Product Main Family | Current Transformers |
| Main Filter | Cable |
| Hole diameter | 23 mm (0.91 in) |
| Approvals, marks, declarations | CE (Europe) | cURus (North America) |
