Split Core Current Transformer 200A, 5A Output, UL Certified
Split Core Current Transformer 200A, 5A Output, UL Certified
Schneider Electric

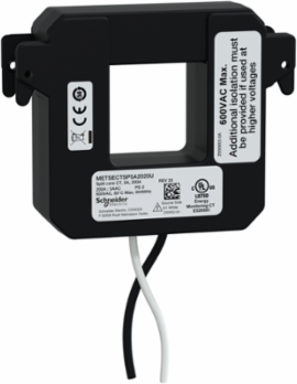

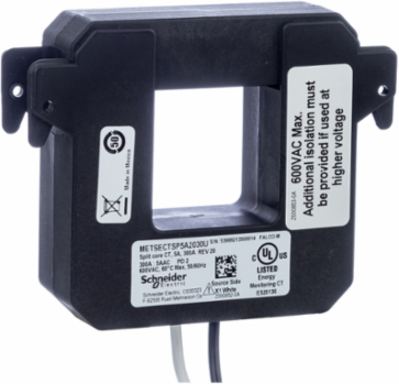

Schneider Electric METSECTSP5A2020U Split Core Current Transformer 200A, 5A Output, UL Certified

  • MPN: METSECTSP5A2020U
  • PPN: SCH-METSECTSP5A2020U

CAD

$141.31

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

This split core current transformer from Schneider Electric is designed for precision and efficiency, with a current rating of 200A and a reliable 5A output. Its split-core design allows for easy installation around existing cables without the need for disconnection, simplifying the integration process in various electrical applications. Being UL certified, this current transformer ensures adherence to safety and performance standards, making it an essential component for accurate current measurement and monitoring in industrial and commercial settings. Ideal for system upgrades or new installations, it provides both convenience and reliability for electrical professionals.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Mexico, United States

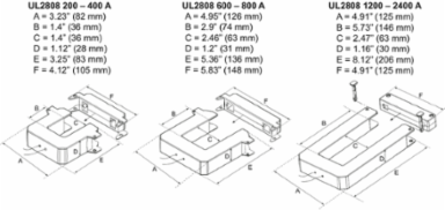

Width
4.12 in
Height3.25 in
Depth1.12 in

Important Information Attributes

Network Frequency
50 Hz, 60 Hz
Carbon Footprint Of The End-of-life Phase [C1 To C4]
0.9 kg CO2 eq., 0.8636762222324955
Carbon Footprint Of The Manufacturing Phase [A1 To A3]
5 kg CO2 eq., 4.980403750773595
Local Data Status
Publishable
Return Indicator
Y
Stock Policy
1
Serviceability
No
Weee Product Category
5
Eoli Availability Display
Yes
Reach Full Compliance Status
Free of Substances of Very High Concern above the threshold
Reach Compliance Directive
Free of Substances of Very High Concern above the threshold
Rohs Eur Status
Compliant
Rohs Eur Full Compliance Status
Compliant
China Rohs Label
1
Without Single Use Plastic
No
Product Kit Identifier
N
Current Transformer Type
split core
Energy Efficiency Optimized
False
Insulation
basic insulation 600 V ACreinforced insulation 300 V AC
Mounting Location
indoor use only
Primary Operational Current
200 A
Product Or Component Type
current transformer
Returnability
Yes
Software Version
v6.2.4
Total Lifecycle Carbon Footprint
107 kg CO2 eq.
Pep Code
ENVPEP2511018_V1-EN
Pep Verification Date
2025-12-26
Psr Version
PSR-0005-ed3-2023 06 06
Data Source
extrapolated product
Functional-unit Quantity
1
Reference Lifetime In Y
10
Energy Model - Installation [A5]
No energy used
Energy Model - End Of Life [C1-c4]
Global, European and French datasets are used.
Height Nominal
internal: 1.4 in
Width Nominal
internal: 1.4 in
Certificate Agency
UL
Nbr. Of Units In Pkg.
1
Take-back
No
Customs Code
8504312000
Carbon Footprint Of The Distribution Phase [A4]0.4367505811220506, 0.4 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.017778954262623603, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]100 kg CO2 eq., 100.27297704794367
Local Publishable Date2025-09-16
Stocking FlagY
Device TypeRelay, Control & Measurement - measuring, monitoring device
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2511018_V1-EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2508
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Current Transformer Ratio200/5
Electrical Connection8 ft 16 AWG flying lead
Installation CategoryIII
Measurement Accuracy1 %
Network TypeAC
Product AvailabilityStock - Normally stocked in distribution facility
RangePowerLogic
Secondary Current5 A
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionOther switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Mexico, MX
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %53
Height Usefultotal: 3.25 in
Width Realtotal: 4.12 in
Accessory / Separate Part Categorymeasurement accessory
Package Weight(Lbs)828 g
Warranty (In Months)18

Environment Attributes Main

Ambient Air Temperature For Storage
-40-70 °C, -40-70 °C
Take Back
No
Recycled Metal Content At Cr Level
0 %
Toxic Heavy Metal Free
Yes
Carbon Footprint
106.57158655633444
Circularity Profile
ENVEOLI2511018_V1-EN
Eu Rohs Directive
Compliant
Packaging Without Single Use Plastic
No
Reach Regulation
Free of Substances of Very High Concern above the threshold
Pep Code
ENVPEP2511018_V1-EN
Pcr Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent internal review
Operating Altitude<= 6561.68 ft (2000 m), <= 6561.68 ft (2000 m)
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Ambient Air Temperature For Operation-15-60 °C-15-60 °C
Environmental DisclosureENVPEP2511018_V1-EN
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Relative Humidity0-95 % non condensing
Pep Verification Date2025-12-26
Psr VersionPSR-0005-ed3-2023 06 06

General Attributes

Product Or Component Type
current transformer

ETIM

ETIM 8
EC002048
ETIM 9EC002048
