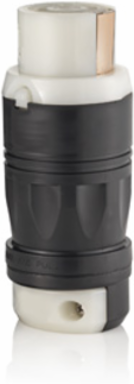

Leviton 7764C 50 Amp Locking Connector, 250 Volt, Nylon, Non-NEMA, Black-White
- MPN: 7764C
- UPC: 078477804438
- PPN: LEV-7764C
CAD
$243.75
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

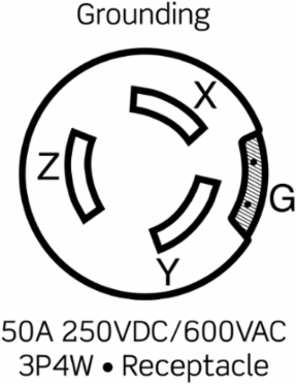

50 Amp, 250 Volt DC/600 Volt AC, NEMA Non-NEMA, 3P, 4W, Locking Connector, Industrial Grade, Grounding - BLACK-WHITE
Features
- One piece contacts reduce friction and overheating
- Unique cord clamp accepts wide range of cord sizes
- Rugged nylon construction resists impact, heat, chemicals, and rough use
- Industry exclusive limited lifetime warranty
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Standards and Certifications
- CSA C22.2 No. 42
- File 152105
- RoHS
- Compliant
- Warranty
- Limited Lifetime Warranty
NOM057
UL 498File E13399
Material Specifications
- Assembly Screws
- Brass
- Color
- Black-White
- Contact - Spring Value
- 0.041inch thick Brass
- Dust Shield
- Santoprene TPE
- Ground Post
- Brass
- Housing Material
- Nylon
- Terminal Block
- 0.062inch thick Copper
- Wiring Chamber
- Nylon
Cable Clamp ScrewPhilips Head, SS 304
Contact - Binding Plate0.100inch thick Brass
Contact RivetBrass
Face ModuleNylon
Ground ShuntBronze
Standard Cable ClampNylon
Terminal Set ScrewSS 302/304
Mechanical Specifications
- Cord Range
- .680 - 1.125
- Terminal Accom.
- #10 min to #4max AWG Solid or Stranded Wire
- Torque Range
- allen wrench to 35 inch-lbs
Product IDRatings and Catalogue No. molded into face and stamped into shroud
Terminal IDX, W, Y, Z and Green for ground
Product Features
- Brand
- Black and White
- NEMA
- Non-NEMA
Device TypeLocking Connector
Environmental Specifications
- Environment
- Dry
- Operating Temperature
- -40°C to 75°C
FlammabilityUL94V-2
Electrical Specifications
- Amperage
- 50 A
- Dielectric Voltage Withstand
- 2000V minimum per UL 498
- Maximum Working Voltage
- 250V DC/600V AC as rated
- Temperature Rise
- Max 30ºC temp rise at full-rated current after 150 cycles of OL at 150% rated DC current
- Wire
- 4
Current InterruptingCertified for current interrupting at full rated current
GroundingGrounding
Pole3
Voltage250 VDC/600 VAC
