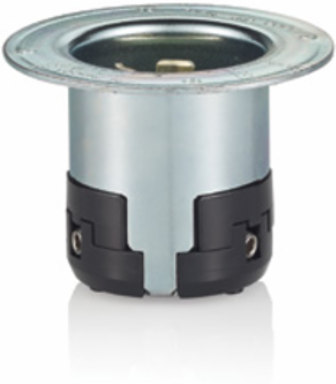

Leviton CS8275 50 Amp 250 Volt Black & White Locking Flanged Inlet, Industrial Grade, 2P 3W
- MPN: CS8275
- UPC: 078477326121
- PPN: LEV-CS8275
CAD
$188.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

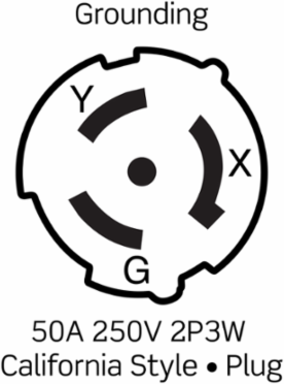

50 Amp, 250 Volt, Non-NEMA, 2P, 3W, Black & White Locking Flanged Inlet, California-Style, Industrial Grade, Grounding - GRAY METAL
Features
- One piece contacts reduce friction and overheating
- Rugged nylon construction resists impact, heat, chemicals, and rough use
- Ratings and NEMA I.D. permanently marked on device
- Industry exclusive limited lifetime warranty
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Standards and Certifications
- CSA C22.2 No. 42
- File 152105
- RoHS
- Compliant
- Warranty
- Lifetime Limited
NOM057
UL498File E13399
Material Specifications
- Body and Contract Carrier
- Reinforced Nylon
- Face Module
- Nylon
- Ground Shunt
- Bronze
- Inlet Blade
- 0.100inch thick Brass
- Terminal Set Screw
- SS 302/304
ColorGray Metal
Flanged CasingZinc Plated Steel
Grounding Shunt RivetBrass
Terminal Block0.062inch thick Copper
Mechanical Specifications
- Product ID
- Ratings and Catalogue No. molded into face
- Terminal ID
- X, W, Y, Z and Green for ground
Terminal Accom.#10 min to #4max AWG Solid or Stranded Wire
Product Features
- Brand
- Black and White
- NEMA
- Non-NEMA
Device TypeLocking Flanged Inlet
Environmental Specifications
- Environment
- Dry
- Operating Temperature
- -40°C to 75°C
FlammabilityRated V-2 per UL94
Electrical Specifications
- Amperage
- 50 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Maximum Working Voltage
- 250V as rated
- Temperature Rise
- Max 30ºC temp rise at full-rated current after 150 cycles of OL at 150% rated DC current
- Wire
- 3
Current InterruptingCertified for current interrupting at full rated current
GroundingGrounding
Pole2
Voltage250 VAC
